Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 23, 1989.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
5010EC-11026L1987-1988 Toyota Supra Turbo (7MG-TE) 3.0L, 183 CI

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-186-1
  • Executive Order 186-1 / D186-1
  • ARB # D-186-1
  • Executive Order No: D-186-1
  • C.A.R.B. No. D-186-1
  • Resolution D-186-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-186-1 PDF

D-186-1 Document:



                               4                                          .

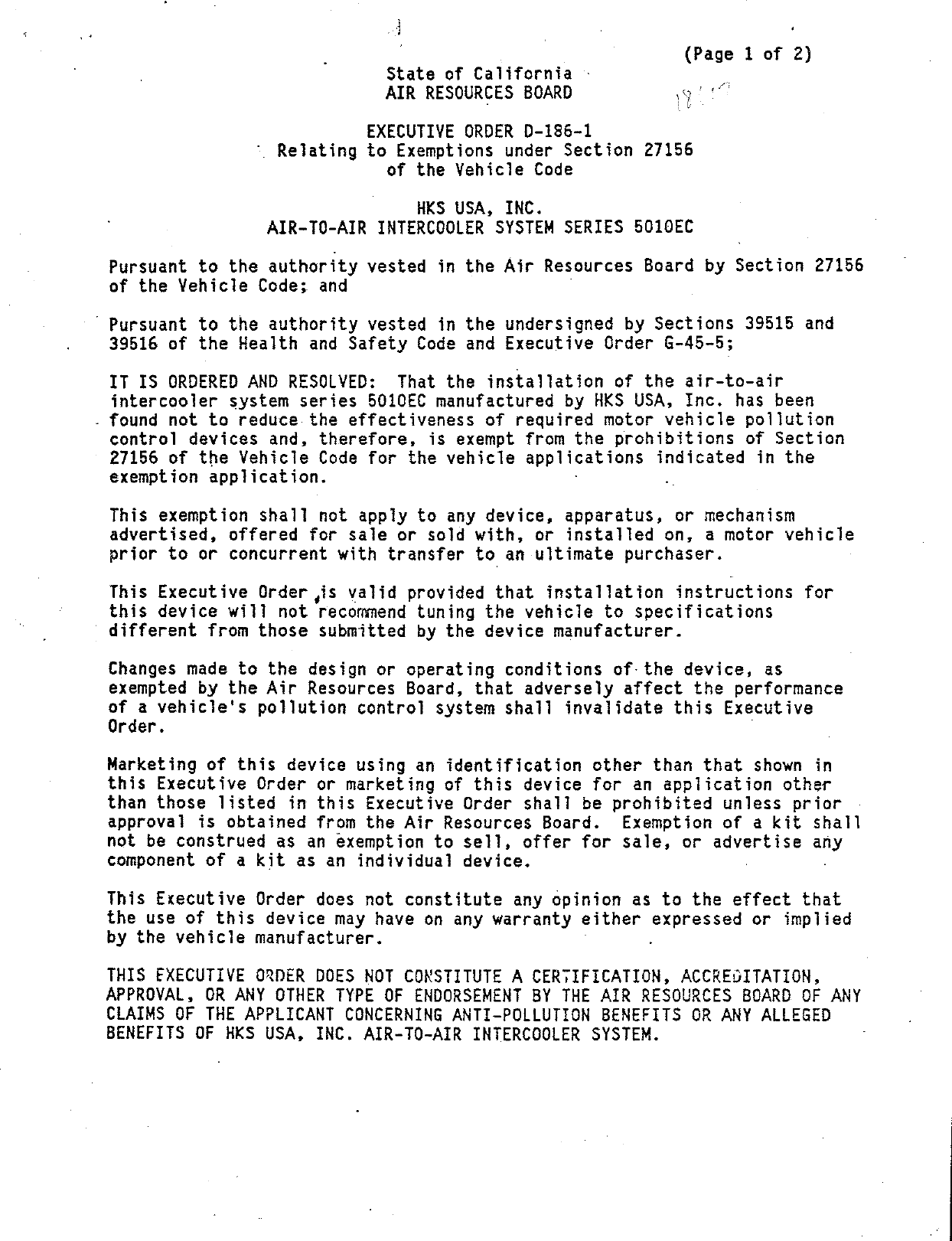

                                   |                         (Page 1 of 2)
                               State of California >
                               AIR RESOURCES BOARD          VZ"”

                            EXECUTIVE ORDER D—186—1
                  Relating to Exemptions under Section 27156
                             of the Vehicle Code

                                HKS USA, INC.
                 AIR—TO—AIR INTERCOOLER SYSTEM SERIES 5010EC

 Pursuant to the author{ty vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and

\ Pursuant to the authority vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Code and Executive Order G—45—5;

 IT IS ORDERED AND RESOLVED:    That the installation of the air—to—air
  intercooler system series 5010EC manufactured by HKS USA, Inc. has been
— found not to reduce the effectiveness of required motor vehicle pollution
  control devices and, therefore, is exempt from the prohibitions of Section
  27156 of the Vehicle Code for the vehicle app11catlons indicated in the
  exemption application.                                  .

 This exemption shall not apply to any device, apparatus, or mechanism
 advertised, offered for sale or sold with, or installed on, a motor vehicle
 prior to or concurrent with transfer to an ultimate purchaser.

 This Executive Order jis valid provided that installation 1nstruct1ons for
 this device will not recommend tuning the vehicle to specifications
 different from those submitted by the device manufacturer.

 Changes made to the design or operating conditions of the device, as
 exempted by the Air Resources Board, that adversely affect the performance
 of a vehicle‘s pollution control system shall invalidate this Executive
 Order .

 Marketing of this device using an identification other than that shown in
 this Executive Order or marketing of this device for an application other
 than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board.  Exemption of a kit shall
 not be construed as an exemption to sell, offer for sale, or advertise any
 component of a kit as an individual device.                             —

 This Executive Order does not constitute any opinion as to the effect that
 the use of this device may have on any warranty either expressed or implied
 by the vehicle manufacturer.                           .

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
 CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
 BENEFITS OF HKS USA, INC. AIR—TO—AIR INTERCOOLER SYSTEM.


HKS USA, INC.         —             20.               EXECUTIVE ORDER D—186—1
AIR—TO—AIR INTERCOOLER SYSTEM                         (Page 2 of 2)
SERIES 5010EC



No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644.   {a)   No person shall install, sell, offer for sale, or
     advertise, or, except in—an application to the state board for
     certification of a device, represent, any device as a motor
     vehicle pollution control device for use on any used motor
     vehicle unless that device has been certified by the state board.
     No person shall sell, offer for sale, advertise, or represent any
     motor vehicle poliution control device as a certified device
     which, in fact, is not a certified device.     ‘Any violation of this
     subdivision is a misdemeanor.*

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.      .     a 0                                          >

;his Executive Order supersedes Executive Order D—186 executed on January
 5, 1989.                                                      -


Executed at E1 Monte, California, this 2250/ day of June, 1989.




                                           O
                                          K. D. Drachand, Chief
                                          Mobile Source Division


                         State of California
                         AIR RESOURCES BOARD




Evaluation of HKS USA,   Inc.‘s Air—To—Air Intercooler System for
Exemption from the Prohibitions   of Yehicle Code Section     27156   in
Accordance with Section 2222, Title 13,       of the California
Administrative Code.




                            June 14,   1989


Evaluation of HKS USA, Inc.‘s Air—To—Air Intercooler System for
Exemption from the Prohibitions of Vehicle Code Section 27156 in
Accordance with Section 2222, Title 13, of the California
Administrative Code.




                                 by
                       Mobile Source Division

                         State of California
                         Air Resources Board
                         9528 Telstar Avenue
                         E1 Monte, CA 91731




(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication.  Approval does not
signify that the contents necessarily reflect the views and
policies of the Air Resources Board, nor does mention of trade
names or commercial products constitute endorsement or
recommendation for use).


                                     SUMMAR Y




HKS USA,   Inc.   (HKS)} has requested an update to their Executive

Order D—186, exemption from the prohibitions of ¥ehicle Code

Section    27156 for    their air—to—air     intercooler    system for      use on

the OEM turbocharged vehicles         listed    in the appendix.



Based on    previous    comparative test data        collected   in   the

evaluation of the exhaust emissions impact of several                  add—on

intercooler kits and the staff‘s engineering evaluation, the

staff concludes that the HKS‘s air—to—air              intercooler kit will

not   adversely affect     exhaust emissions        from vehicles     for which

the   exemption    is   requested.



The staff recommends       that   HKS USA,   Inc.    be qgranted an exemption

for their air—to—air intercooler system as requested and that

Executive Order D—186—1 be issued.


                                  CONTENTS

                                                         Page Number

SUMMAR Y                                                       i

CONTENTS                                                       11
I.     NT         C                                            1

II.    ONCLUS                                 .                1

III. RECOMMENDATIONS                                           1
IV.          RC                      T               T         2

Y.         scus                                                3
VI.    APPENDIX —     List of Vehicle Applications             4




                                     11


 Evaluation of HKS USA,          Inc.‘s Air—To—Air      Intercooler System for
 Exemption from the Prohibitions          of Vehicle Code Section 27156           in
 Accordance with Section 2222,          Title    13,   of the California
 Administrative Code.



 I.      INTRODUCTION


 HKS USA,    Inc.    (HKS), of 20312 Gramercy Place,         Torrance,
 California 90501,       has requested an exemption         from the
 prohibitions       of Yehicle Code Section 27156 for         their    air—to—air
 intercooler system for use on the OEM turbocharged vehicles
 listed    in the    appendix.




OI1I.    CONCLUSIO

 Based on    previous    comparative tests       evaluating the exhaust
 emission    impact    of different    add—on    intercooler kits      and the
 staff‘s engineering evaluation, the staff concludes that HKS‘s
 air—to—air intercooler system will             not adversely affect exhaust
 emissions    from vehicles for which the exemption            is   requested.




 III.    RECOMMENDATIO


 The    staff recommends    that HKS USA,       Inc.   be granted   an exemption
 for their    air—to—air    intercooler    system as      requested    and that
 Executive Order D—186—1 be issued.


IV.            0      R     _SYSTEM      SC        N            P         ION


The    purpose of the       intercooler        is to    increase the density of
the    intake air/fuel       charge of a turbocharged engine by reducing
the temperature of the charge air.                     This reduction in the intake
charge temperature allows a higher charge density resulting in
increased horsepower and volumetric efficiency at                               a given engine
speed.


The major components of the HKS air—to—air intercooler system
are:    aluminum heat exchanger,              pressure pipes,             cadmium plated
brackets,    silicone rubber           connector       hoses,       hose clamps,
compressor    by—pass valve,           silicone rubber          vacuum and         blow—by
hoses.     They are packaged with other installation hardware and
instructions       and sold     as    a kit.     The system          is   designed          using
different design          concepts,      including tubing            lengths,      diameter         and
bends,    to suit the requirements              of the    individual            vehicle.


The HKS air—to—air          intercooler system heat exchanger is mounted
in the vehicles‘          frontal     air stream.        The    intercooler            is    spliced
into the original          intake air plumbing between the turbocharger
compressor and the          intake manifold throttle body.                       During boost
conditions,    compressed         air,    normally 230 degrees              F,    is    cooled to
130 degrees F by the HKS intercooler core being delivered to the
engine.     Some RKS       intercooler        systems    incorporate a            compressor
by—pass valve which routes               compressor discharge              directly          into the
compressor    intake under deceleration.                 This       arrangement prevents
impeller deceleration between gear shifts and reduces shock waves
in    intercooler plumbing and core.


V.       DISCUSSION


HKS air—to—air         intercooler system is similar             in design as other
manufacturers‘         systems that have been exempted by the Air
Resources Board         (ARB).     Performance analyses         that were previously
submitted to the ARB by other manufacturers of similar system
indicated that typical thermal efficiency of a turbocharger
intercooler system ranges between 40% and $4%.                         Based on
predicted efficiency of a heat exchanger on                     previous    air
temperature measurements            of other exempted       intercoolers          installed
and tested on vehicles           and on a review of the device theory of
operation,    the      staff has    concluded   that the        use of an    intercooler
would not adversely affect vehicle emissions or result in the
degrading of a vehicle‘s driveability.


In addition,      it    is the staff‘s opinion that the combustion
temperature will         be reduced    as   a result of cooler           intake    charge
with the use of the air—to—air              intercooler     system.       This    reduction
in   combustion temperature will            reduce the formation of NOx              gases
in   the combustion       chamber,    resulting    in    less    NOx    exhaust
emissions .


HKS air—to—air         intercooler    system has       similar design with Spearco
air—to—air    intercooler        system which     is    exempted by the ARB          under
E.0.   D—140—3.        Spearco‘s previous test results demonstrate no
adverse effect on the vehicle‘s exhaust emissions of their kit.


APPENDLX


7. List vehicle makes, modal years, angine displacements and systeme that are
compatible with the device, end for which exemption is requested. Specify the
correct davice model for each vahicle.                        —


HKS Part No.      Model—Years    Make      _Mogel/Engine

sp10EC—11025L     1987—19389     Toyota     Supra Turbo (TMG—TE)       3.0,.193
sp10ec—127213     1985—1987      Toyota     4WD PU Turbo (EZR‘TE;      2.4,144

so10Ec—128213     1985—1987      Toyota     4 Runner Turbo (ZZR—TE)    2.4,144

spi0EC—12221J     1985—1987      Toyota     240 PU }urbo (22R—TE)      2.4,144
sQ10EC—2404gH     1984—1386      Nissan     300IX Turbo {VG3OET)       3.0,181
s910E0—24045L     1987           Nissan     3002X Turbo {VS30ET)       3.0,181
sqgi0eo—244478H   idea—i885      Nissan     2005X Turbo {(CALI8ET)     1.8,118
sqi0ec—r4z43€     1981—1983      Nissan     2802X Turbo (L28ET}        2.8, 188
seigsc—a70706     1983           Mitsub     Starion Turbho {§548T)     2.6, 186
SQ10EC—47070H     19894—1987     Mitsub     Starion ES/LE (6548T)      2.56. 186
S#10EC—47870H     1984—1987      Dodge/   Conquest Turbo (5548T)       2.6, 156
                                 Plymth/
                                 Chrysier

SsG10EC—47171J    1985—1 986     Mitsub    Mirage Turbeo (§328T)       1.6, 98

SQ1gEC—47171J     1985—1985      Dodge /   Colt Turbe (§328T)          1.5, 98
                                 Plymth

SQ10EC—¢7171L     1987—1988      Mitsub    Mirage Turbo (§32BT)        1.86, 38
SO1GEC—47171L     1987—13988     Dodge /   Colt Turbo (§32BT)          1.6, 98
                                 Plymth

SQ10EC—58383K     1995—1987     . Mazda    626 6T Turbo (FE Turbe}    2.0,122
