Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 6, 2003.
As of Tuesday, October 15th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
WIK-LR4-4.8LA1999-2002 GENERAL MOTORS TRUCKS 4.8L, Pulley Supercharger 3.995", Pulley Crankshaft 7.50", Compressor Size 2.1LThe WhippleCharger is a supercharger consisting of the following main components: Twin Screw Whipple supercharger, two auxiliary fuel injectors (one injector on the PT-Cruiser) with a stand alone computer, air bypass valve, a low temperature thermostat to replace stock thermostat, and a new air cleaner element for use in the stock air cleaner housing. Intercooler is included on selected kits and denoted as IC in the part number. The maximum boost is 8 psi. on the Ford and General Motors vehicles and 9.2 psi. on the Chrysler PT-Cruisers.Excluding any Ford or General Motors vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-20
  • Executive Order 231-20 / D231-20
  • ARB # D-231-20
  • Executive Order No: D-231-20
  • C.A.R.B. No. D-231-20
  • Resolution D-231-20
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-20 PDF

D-231-20 Document:

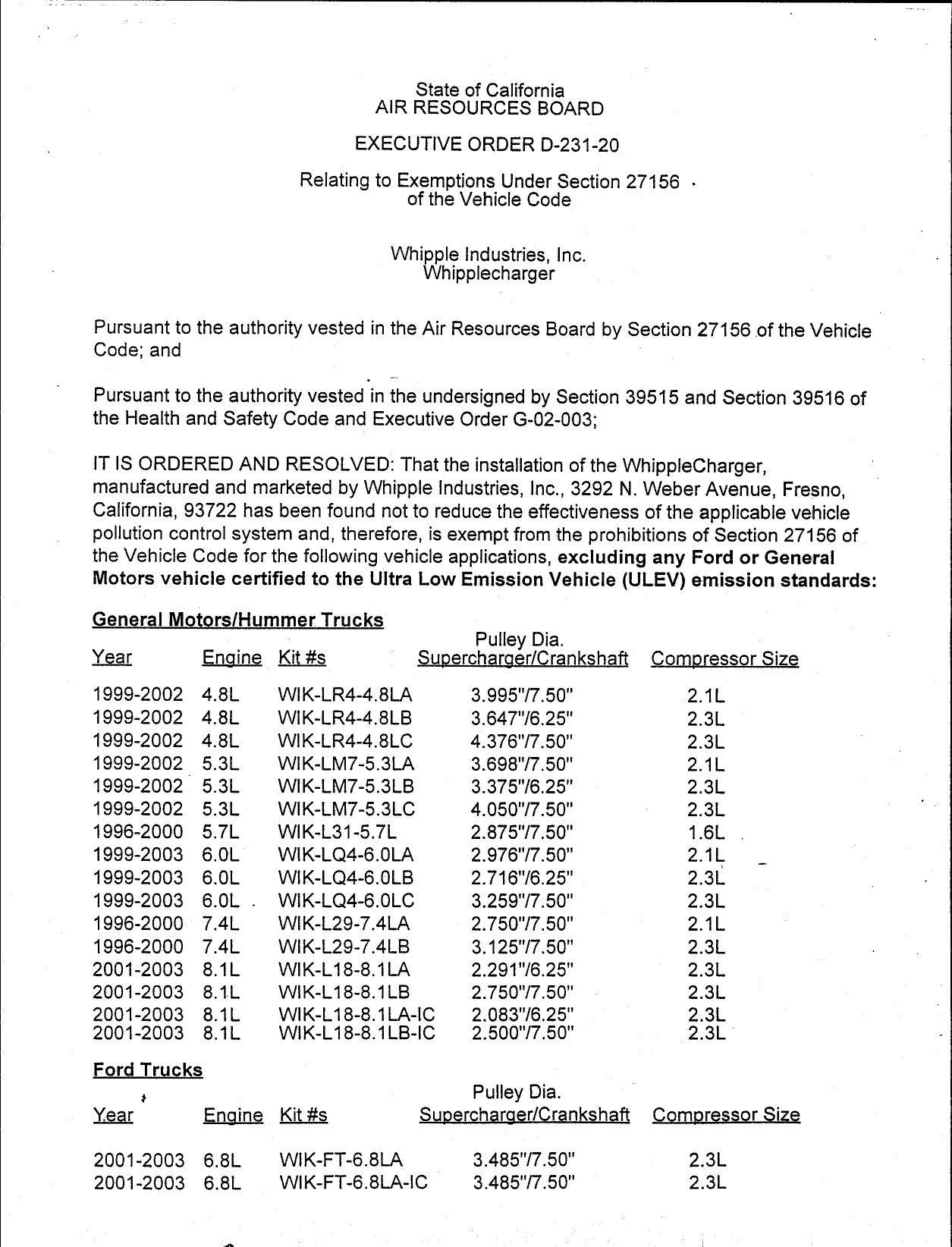

                                     State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—231—20
                         Relating to Exemptions Under Section 27156 —
                                      of the Vehicle Code


                                   Whipple Industries, Inc.
                                      Whipplecharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle |
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the WhippleCharger,
manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber Avenue, Fresno,
California, 93722 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the following vehicle applications, excluding any Ford or General
Motors vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards:

General Motors/Hummer Trucks
                                              Pulley Dia.
Year          Engine   Kit#s           Supercharger/Crankshaft        Compressor Size

1999—2002    4.8L      WIK—LR4—4.8LA         3.995"/7.50"               21L
1999—2002    4.8L      WIK—LR4—4.8LB         3.647"/6.25"               2.3L
1999—2002    4.8L      WIK—LR4—4.8LC         4.376"/7.50"               2.3L
1999—2002    5.3L.     WIK—LM7—5.3LA         3.698"/7.50"               21L
1999—2002    5.3L      WIK—LM7—5.3LB         3.375"/6.25"               2.3L
1999—2002    5.3L      WIK—LM7—5.3LC         4.050"/7.50"         |     2.3L
1996—2000    5.7L      WIK—L31—5.7L          2.875"/7.50"               1.6L .
1999—2003    6.OL      WIK—LQ4—6.O0LA        2.976"/7.50"               2AL    _
1999—2003    6.OL      WIK—LQ4—6.0LB         2.716"/6.25"               2.3L
1999—2003    6.OL .    WIK—LQ4—6.0LC         3.259"/7.50"               2.3L
1996—2000    7.4L      WIK—L29—7.4LA         2.750"/7.50"               2. 1L
1996—2000    7.4L      WIK—L29—7.4LB         3.125"/7.50"               2.3L
2001—2003    81L       WIK—L18—8. 1LA        2.291"/6.25"               2.3L
2001—2003    81L       WIK—L18—8.1LB         2.750"/7.50"               2.3L
2001—2003    8.AL      WIK—L18—8.1LA—IC      2.083"/6.25"               2.3L
2001—2003    8.1L      WIK—L18—8.1LB—IC      2.500"/7.50"               2.3L~

Ford Trucks
       ;                                     Pulley Dia.
Year          Engine   Kit#s           S      harger/Crankshaft        mpressor

2001—2003     6.8L     WIK—FT—6.8LA          3.485"/7.50"                2.3L
2001—2003     6.8L.    WIK—FT—6.8LA—IC _      3.485"/7.50"               2.3L


   Chrysler PT—Cruiser
                                                   Pulley Dia.
   Year          Engine Kit#s        .      Supercharger/Crankshaft        Compressor Size

   2001—2002     24L      WIK—PT—2.4              2.875"/6.30"                1.2L
   2003*         2.4L     WIK—PT—2.4              2.875"/6.30"                1.2L
   2001—2002     2.4L     WIK—PT—ULEV—2.4         3.000"/6.30"                1.2L

   * non turbo models with manual transmission



   The WhippleCharger is a supercharger consisting of the following main components: Twin
   Screw Whipple supercharger, two auxiliary fuel injectors (one injector on the PT—Cruiser) with
   a stand alone computer, air bypass valve, a low temperature thermostat to replace stock
   thermostat, and a newair cleaner element for use in the stock air cleaner housing.
~ _ Intercooler is included on selected kits and denoted as IC in the part number. The maximum
   boost is 8 psi. on the Ford and General Motors vehicles and 9.2 psi. on the Chrysler
   PT—Cruisers.

   This Executive Order is valid provided that the installation instructions for the supercharger
   will not recommend tuning the vehicle to specifications different from those of the vehicle °
   manufacturer. Whipple Industries, Inc. recommends that only premium fuel be used.

   Changes made to the design or operating conditions of the WhippleCharger, as exempt by
   the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
   control system shall invalidate this Executive Order.

   This Executive Order shall not apply to any Whipple Industries WhippleCharger advertised,
   offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer
   to an ultimate purchaser.

   Marketing of the supercharger using any identification other than that shown in this Executive
   Order or marketing of the supercharger for an application other than those listed in this
   Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
   Board. Exemption of the supercharger shall not be construed as exemption to sell, offer for
   sale, or advertise any component of the kit as an individual device.

   This Executive Order does not constitute any opinion as to the effect the use of the
   supercharger may have on any warranty either expressed or implied by the vehicle
   manufacturer.

   This Executive Order is granted based on emissions test data generated on the following test
   vehicles using the Cold Start CVS—75 Federal Test Procedures. Emission levels of the
   modified vehicles met the applicable emission standards. The following test results are in
   grams per mile:

                   WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—20


                   2001 2.4L (LEV) Chrysler              2002 2.4L (ULEV) Chrysier
                   PT—Cruiser                            PT—Cruiser

                  NMOG CO         NOx     HCHO           NMOG      CO     NOx     HCHO
Standards         0.075 3.4       0.2     0.015          0.040     1.7     0.2    0.008
device w/ dfs     0.042 0.9       0.1     0.001          0.035     1.3    0.      0.000


                  2001 6.8L (LEV) Ford                   1999 5.3L (LEV) General Motors
                  Excursion                              C1500

                  NMOG CO        ‘NOx HCHO               NMOG      CO    NOx     HCHO

Standards         0.195    5.0    0.6    0.022 _         0.160     4.4   0.4      0.018
device w/ dfs     0.118    1.5    0.2     0.002          0.105     1.3   0.4     ©0.002

This Executive Order is also based on On—Board Diagnostic I! (OBD [I) tests conducted on
the same test vehicles. Test data showed that the supercharger when installed on the
vehicles did not affect the vehicle‘s ability to perform its OBD II monitoring. _

This Executive Order is granted based on submitted emissions test data which show that
emissions are not affected during the Cold—Start CVS—75 Federal Test Procedures. However,
the ARB finds that reasonable grounds exist to believe that use of the WhippleCharger may
adversely affect emissions of motor vehicles when operating under conditions outside the
parameters of the previously prescribed test procedures. Accordingly, the ARB reserves the
right to conduct additional emission tests, in the future, as such tests are developed, that will
more adequately measure emissions from all cycle phases. If such test results demonstrate
that the WhippleCharger adversely affects emissions during off—cycle conditions (defined as
those conditions which are beyond the parameters of the Cold—Start CVS—75 Federal Test
Procedures), this Executive Order shall be effectively rescinded as of the date the test results
are validated.

Further, if such test results or other evidence provides the ARB with reason to suspect that
the WhippleCharger will affect the durability of the emission control system, Whipple shall be
required to submit durability data to show that the durability of the vehicle emission control
system is not, in fact, affected and/or that the add—on or modified part demonstrates
adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

      ¢




                 WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—20


                                               —4—


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF WHIPPLE INDUSTRIES,
INC.‘S WHIPPLECHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this Qfll      day of February 2003.




                                 All%yons, Chief
                                 Mobile Source Operations Division




                 WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—20



Document Created: 2005-09-01 12:42:59
Document Modified: 2005-09-01 12:42:59
