Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 8, 2004.
As of Sunday, August 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1996-2004 non-SFTP GM Trucks, 1996-2004 Ford Trucks, excluding SULEVs, and 2001-2003 non-SFTP PT-Cruisers, excluding any General Motors vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards and 2004 model-year Ford trucks with the following engine test groups: 4FMXTO5.4R17, 4FMXTO5.4R4P, 4FMXTO5.4RM6, and 4FMXTO4.62E6..The WhippleCharger consists of the following main components in all kits: Twin Screw Whipple supercharger, intake manifold, bypass valve, a low temperature thermostat to replace the stock thermostat, and a new air cleaner element for use in the stock air cleaner housing. Intercooler is included on selected kits and denoted as IC in the part number. The General Motors kit also includes a reflashed ECM, a stand alone computer, and two extra injectors. Boost is limited to 8 psi. For Ford, the 3.0L kit includes a reflashed ECM, a set of high flow injectors, a larger diameter mass airflow sensor and throttle body. Boost is limited to 11 psi. The 4.6/5.4L kit includes a reflashed ECM and set of high flow injectors. Boost is limited to 10 psi. The 6.8L kit includes a reflashed ECM, a stand alone computer, and two extra injectors. Boost is limited to 8 psi. The PT-Cruiser kit includes a stand alone computer, and one extra injector. Boost is limited to 9.2 psi.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-21
  • Executive Order 231-21 / D231-21
  • ARB # D-231-21
  • Executive Order No: D-231-21
  • C.A.R.B. No. D-231-21
  • Resolution D-231-21
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]om

Download: Executive Order D-231-21 PDF

D-231-21 Document:

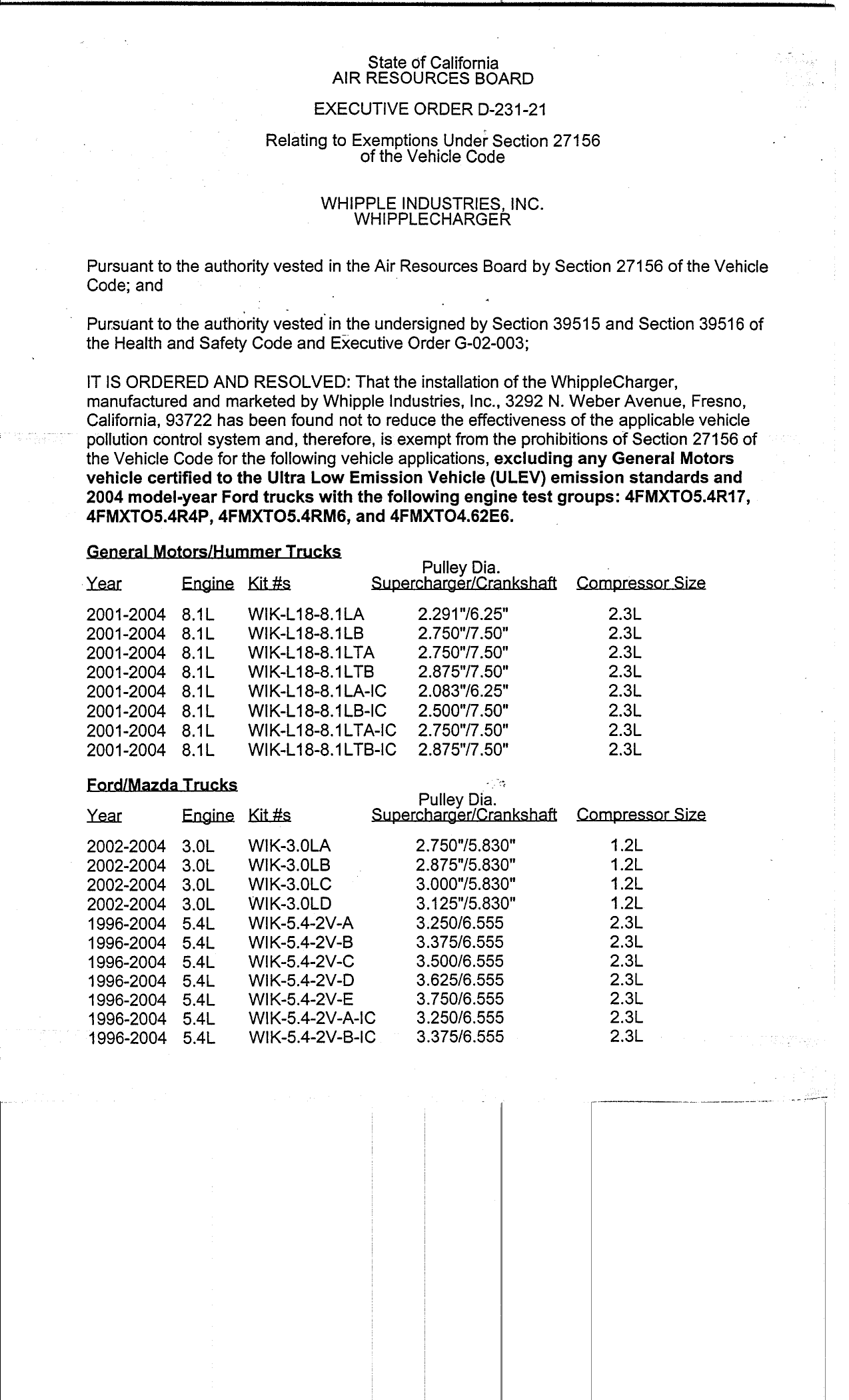

                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—231—21
                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                  WHIPPLE INDUSTRIES, INC.
                                     WHIPPLECHARGER

  Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
  Code; and                                  '

c Pursuant to the aut‘h‘drity vestedin the undersigned by Section 39515 and Section 39516 of
  the Health and Safety Code and Executive Order G—02—003;

  IT I1S ORDERED AND RESOLVED: That the installation of the WhippleCharger,
  manufactured and marketed by Whipple Industries, Inc., 3292 N. Weber Avenue, Fresno,
  California, 93722 has been found not to reduce the effectiveness of the applicable vehicle
  pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of
  the Vehicle Code for the following vehicle applications, excluding any General Motors
  vehicle certified to the Ultra Low Emission Vehicle (ULEV) emission standards and
  2004 model—year Ford trucks with the following engine test groups: 4FMXTO5.4R17,
  4FMXTO5.4R4P, 4FMXTO5.4RM6, and 4FMXTO4.62E6.

  Motors/Hummer
                                                Pulley Dia.              on

  2001—2004    8.A1L    WIK—L18—8. 1LA         2.291"/6.25"              2.3L
  2001—2004    81L      WIK—L18—8.1LB          2.750"/7.50"              2.3L
  2001—2004    81L      WIK—L18—8.1LTA         2.750"/7.50"              2.3L
  2001—2004    8.1L     WIK—L18—8.1LTB         2.875"/7.50"              2.3L
  2001—2004    8.A1L    WIK—L18—8.1LA—IC       2.083"/6.25"              2.3L
  2001—2004    81L      WIK—L18—8. 1LB—IC      2.500"/7.50"              2.3L
  2001—2004    8.A1L    WIK—L18—8 1LTA—IC      2.750"/7.50"              2.3L
  2001—2004    81L      WIK—L18—8.1LTB—IC      2.875"/7.50"              2.3L


                                               Pulley Dia.

  2002—2004    3.0L     WIK—3.O0LA             2.750"/5.830"             1. 2L
  2002—2004    3.0L     WIK—3.0LB      .       2.875"/5.830"             1.2L
  2002—2004    3.0L     WIK—3.0LC    _         3.000"/5.830"             1.2L
  2002—2004    3.0L     WIK—3.0LD              3.125"/5.830"             1.2L
  1996—2004    5.4L     WIK—5.4—2V—A           3.250/6.555               2.3L
  1996—2004    5.4L     WIK—5.4—2V—B           3.375/6.555               2.3L
  1996—2004    5.4L     WIK—5.4—2V—C           3.500/6.555               2.3L
  1996—2004    5.4L     WIK—5.4—2V—D           3.625/6.555               2.3L
  1996—2004    5.4L     WIK—5.4—2V—E           3.750/6.555               2.3L
  1996—2004    §5.4L    WIK—5.4—2V—A—IC        3.250/6.555               2.3L
   1996—2004   5.4L     WIK—5.4—2V—B—1C        3.375/6.555               2.3L


                                               2.

Trucks
                                              Pulley Dia.


 1996—2004   5.4L     WIK—5.4—2V—C—IC         3.500/6.555                  2.3L
1996—2004    5.4L     WIK—5.4—2V—D—1C         3.625/6.555                  2.3L
1996—2004    5.4L     WIK—5.4—2V—E—1C         3.750/6.555                  2.3L
1996—2004    4.6L     WIK—5.4—2V—A            3.875/6.496                  2.3L
1996—2004    4.6L     WIK—5.4—2V—B            4.000/6.496                  2.3L
1996—2004    4.6L     WIK—5.4—2V—C            4,125/6.496                  2.3L
1996—2004    4.6L     WIK—5.4—2V—A—1C         3.875/6.496                  2.3L
1996—2004    4.6L     WIK—5.4—2V—B—1C         4.000/6.496                  2.3L
1996—2004    4.6L     WIK—5.4—2V—C—I1C        4.125/6.496                  2.3L

2001—2004    6.8L     WIK—FT—6.8LA            3.485"/7.50"            _—   2.3L
2001—2004    6.8L     WIK—FT—6.8LA—IC         3.485"/7.50"                 2.3L

PT—Cruiser
                                              Pulley Dia.


2001—2002    2.4L     WIK—PT—2.4              2.875"/6.30"                 1.2L
2003*        2.A4L    WIK—PT—2.4              2.875"/6.30"                 1 .2L
2001—2002    2.4L     WIK—PT—ULEV—2.4         3.000%/6.30"                 1 .2L

* non turbo models with manual transmission

The WhippleCharger consists of the following main components in all kits: Twin Screw
Whipple supercharger, intake manifold, bypass valve, a low temperature thermostat to
replace the stock thermostat, and a new air cleaner element for use in the stock air cleaner
housing. Intercooler is included on selected kits and denoted as IC in the part number.

The General Motors kit also includes a reflashed ECM, a stand alone computer, and two
extra injectors. Boost is limited to 8 psi.

For Ford, the 3.0L kit includes a reflashed ECM, a set of high flow injectors, a larger diameter
mass airflow sensor and throttle body. Boost is limited to 11 psi. The 4.6/5.4L kit includes a
reflashed ECM and set of high flow injectors. Boost islimited to 10 psi. The 6.8L kit includes
a reflashed ECM, a stand alone computer, and two extra injectors. Boost is limited to 8 psi.

The PT—Cruiser kit includes a stand alone computer, a'nd one extra injector. Boost is limited .
to 9.2 psi.

This Executive Order is valid provided that the installation instructions for the supercharger
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer. Whipple Industries, Inc. recommends that only premium fuel be used.




               WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—21


                                                  —3.


Changes made to the design or operating conditions of the WhippleCharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Industries, Inc.‘s WhippleCharger
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the supercharger shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the
supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

 This Executive Order is granted based on emissions test data generated on the following test
 vehicles using the Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental
 Federal Test Procedure (SFTP USO6/SCO3) test cycles: 2004 model—year Ford Ranger,
 2001 and 2002 model—year Chrysler PT—Cruiser, 2001 model—year Ford Excursion, and 1999
 model—year General Motors C1500 truck. Results are in grams per mile with deterioration
 factors added to CVS—75 FTP results. Emission levels of the modified vehicles met the
applicable emission standards.

                   2001 2.4L (LEV) Chrysler               2002 2.4L (ULEV) Chrysler
                   PT—Cruiser                             PT—Cruiser

                  NMOG CO          NOx    HCHO            NMOG      CO     NOx     HCHO
Standards         0.075 34        02      0.015           0.040     1.7     0.2    0.008
Device w/ dfs     0.042 0.9       0.4     0.001           0.035     1.3    0.      0.000

                  2001 6.8L (LEV) Ford                    1999 5.3L (LEV) General Motors
                  Excursion                              . 91500

                  NMOG CO           NOx HCHO            "NMOG CO NOx HCHO
Standards         0.195    5.0    0.6    0.022           0160       4.4   0.4     0.018
Device w/ dfs     0.118    15     02     0.002          0105        1.3   0.4     0.002

                  2004 3.0L (ULEV) Ford
                  Ranger
                                                             USO6/SCO3
                  NMOG CO          NOx    HCHO            NMHC+NOx     CO
Standards         0.100 34        0.2      0.015          0.25/0.27    10.5/3.5
Device w/ dfs     0.070    0.8    0.04    0.001           0.04/0.003       0.89/0.03




                WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—21


                                               —4.


This Executive Order is also based on On—Board Diagnostic II (OBD 11 tests conducted on
the same test vehicles. Test data showed that the supercharger when installed on the
vehicles did not affect the vehicle‘s ability to perform its OBD II monitoring.

The ARB reserves the right in the future to review this Executive Order and the exemption
provided herein to assure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF WHIPPLE INDUSTRIES,
INC.‘S WHIPPLECHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this gfl’t day of March 2004.




                                      Allen izns, Chief
                                      Mobile Source Operations Division




                WHIPPLE INDUSTRIES, INC.—WHIPPLECHARGER—D—231—21
