Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 24, 2003.
As of Thursday, October 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModificationRemarks
1993-1997 Del Sol DOHC 1.6LCrankshaft/Supercharger pulley diameters 5.4/4.0"The Supercharger Kit for Honda vehicles includes an Eaton supercharger designed to give a maximum boost of 5 psi., a new fuel pressure regulator or modifications made to the stock fuel pressure regulator, and an intake manifold. All components installed on the original intake manifold are transferred to the new intake manifold including the throttle body and EGR valve. On Integra models, a vacuum switch valve used on the original intake manifold to switch from short to long intake runners is not utilized, the switch is secured away from the new intake manifold and electrically connected. The factory air filter box is retained.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-344-10
  • Executive Order 344-10 / D344-10
  • ARB # D-344-10
  • Executive Order No: D-344-10
  • C.A.R.B. No. D-344-10
  • Resolution D-344-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-344-10 PDF

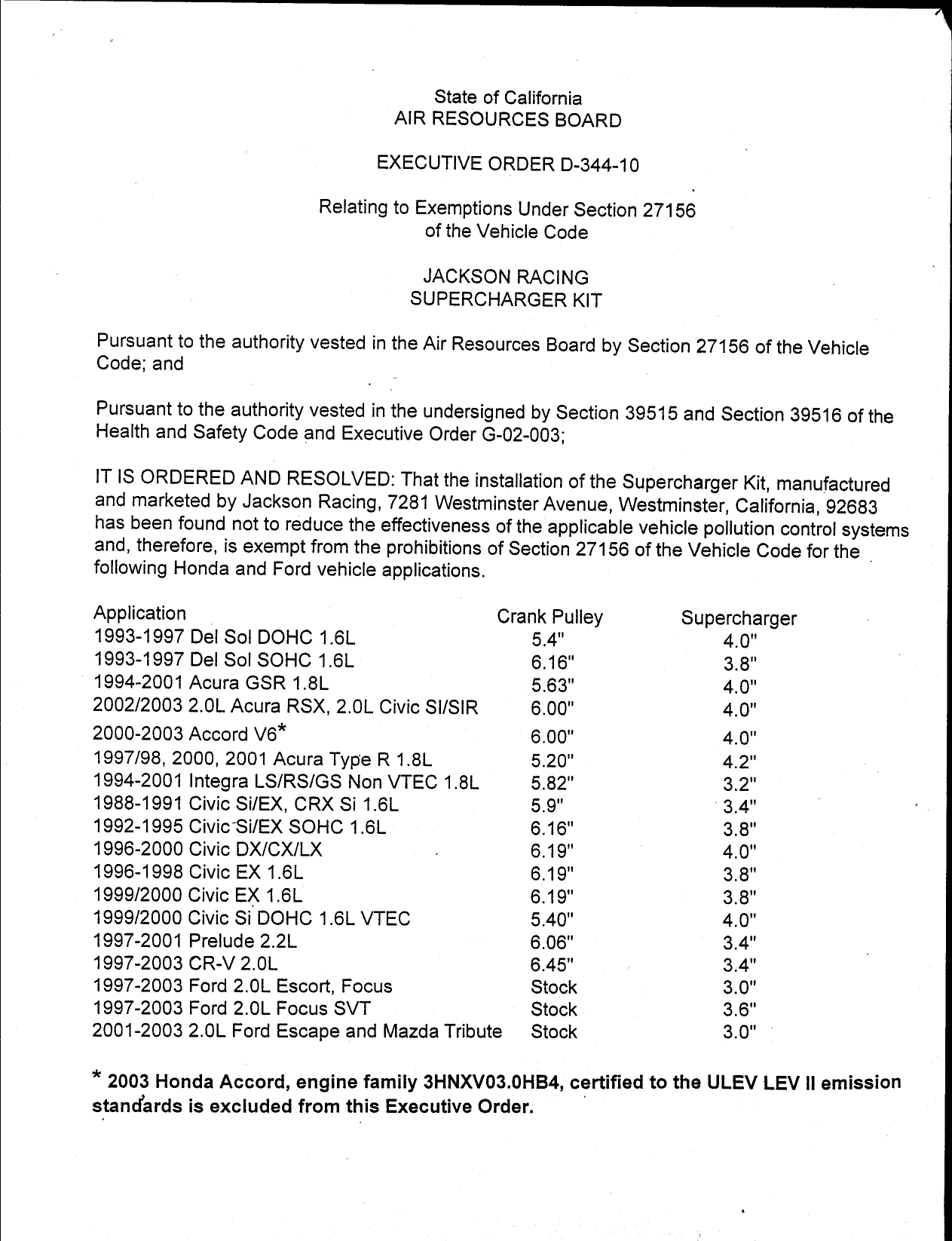

D-344-10 Document:



                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—344—10

                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                      JACKSON RACING
                                     SUPERCHARGER KIT

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kit, manufactured
and marketed by Jackson Racing, 7281 Westminster Avenue, Westminster, California, 92683
has been found not to reduce the effectiveness of the applicable vehicle pollution control systems
and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the _
following Honda and Ford vehicle applications.

Application _                                    Crank Pulley          Supercharger
1993—1997 Del Sol DOHC 1.6L                          5.4"                  4.0"
1993—1997 Del Sol SOHC 1.6L                          6.16"                 3.8"
1994—2001 Acura GSR 1.8L.                            5.63"                 4.0"
2002/2003 2.0L Acura RSX, 2.0L Civic SI/SIR          6.00"                 4.0"
2000—2003 Accord V6*                                 6.00"                  4.0"
1997/98, 2000, 2001 Acura Type R 1.8L.               5.20"                  4.2"
1994—2001 Integra LS/RS/GS Non VTEC 1.8L.            5.82"                  3.2"
1988—1991 Civic SiU/EX, CRX Si 1.6L                  5.9"                  ©3,4"
1992—1995 Civic Si/EX SOHC 1.6L                      6.16"                  3.8"
1996—2000 Civic DX/CX/LX            .                6.19"                  4.0"
1996—1998 Civic EX 1.6L.                             6.19"                  3.8"
1999/2000 Civic EX 1.6L                              6.19"                  3.8"
1999/2000 Civic Si DOHC 1.6L VTEC                    5.40"                  4.0"
1997—2001 Prelude 2.2L                               6.06"                  3.4"
1997—2003 CR—V 2.O0L                                 6.45"       ,          3.4"
1997—2003 Ford 2.0L Escort, Focus                    Stock                  3.0"
1997—2003 Ford 2.0L Focus SVT                        Stock                  3.6"
2001—2003 2.0L Ford Escape and Mazda Tribute         Stock                  3.0" ~

* 2003 Honda Accord, engine family 3HNXVO03.0HB4, certified to the ULEV LEV II emission
standards is excluded from this Executive Order.


                                                  «3.


The Supercharger Kit for Honda vehicles includes an Eaton supercharger designed to
give a maximum boost of 5 psi., a new fuel pressure regulator or modifications made to the stock
fuel pressure regulator, and an intake manifold. All components installed on the original intake
manifold are transferred to the new intake manifold including the throttle body and EGR valve.
On Integra models, a vacuum switch valve used on the original intake manifold to switch from
short to long intake runners is not utilized, the switch is secured away from the new intake
manifold and electrically connected. The factory air filter box is retained.

The Supercharger Kit for Ford vehicles includes an Eaton supercharger designed to give a
maximum boost of 6 psi at redline, and a new intake manifold. The factory air filter box is
retained.

Changes made to the design or operating conditions of the Supercharger Kit, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

This Executive Order shall not apply to any Supercharger Kit advertised, offered for sale, sold
with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.                                              '

Marketing of the Supercharger Kit using any identification other than that shown in this Executive
Order or marketing of the Supercharger Kit for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the Supercharger Kit shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Supercharger
Kit may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on emissions test data generated on a 2002 Ford Focus
certified to the Ultra Low—Emission Vehicle (ULEV) emission standards and a 2002 Acura RSX
certified to the Low—Emission Vehicle II (LEV II) emission standards. Emission levels of the
modified vehicles met the applicable emission standards over the Cold—Start CVS—75 Federal
Test Procedure (FTP) and the Supplemental Federal Test Procedure (USO8/S5C03) test cycles.
Results are in grams per mile with deterioration factors added to CVS—75 results:

Focus                     CVS—75                            USO6/SCO3

                   NMOG CO         NOx    HCHO              NMHC+NOx       CO
Standards          0.040 1.7       0.2    0.008             0.14/0.20      8.0/2.7
Device             0.034 0.6       0.04   0.001             0.06/0.01      0.6/0.1




                       JACKSON RACING—SUPERCHARGER KIT—D—344—10


                                                 —3.


Acura RSX                  CVS—75                          USO6/SCO3

                  NMOG CO          NOx   HCHO          _ NMHC+NOx         CO
Standards         0.075 3.4       0.05   0.015           0.14/0.20      . 8.0/2.7
Device            0.045 0.8       0.04   0.001           0.06/0.05        1.6/0.4

This Executive Order is also based on an On—Board Diagnostic II (OBD II) test conducted on the
same test vehicles. Test data showed that the supercharger when installed on the vehicles did
not affect the vehicles‘ ability to perform their OBD II monitoring.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF JACKSON RACING‘S SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

Executed at El Monte, California, this fi”‘ day of February 2003.




                                  AHen’Eyons, Chief
                                  Mobile Source Operations Division




                        JACKSON RACING—SUPERCHARGER KIT—D—344—10



Document Created: 2005-09-01 12:40:14
Document Modified: 2005-09-01 12:40:14
