Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 18, 2014.
As of Thursday, June 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
see pdfsee pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-57-30
  • Executive Order 57-30 / D57-30
  • ARB # D-57-30
  • Executive Order No: D-57-30
  • C.A.R.B. No. D-57-30
  • Resolution D-57-30
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-57-30 PDF

D-57-30 Document:

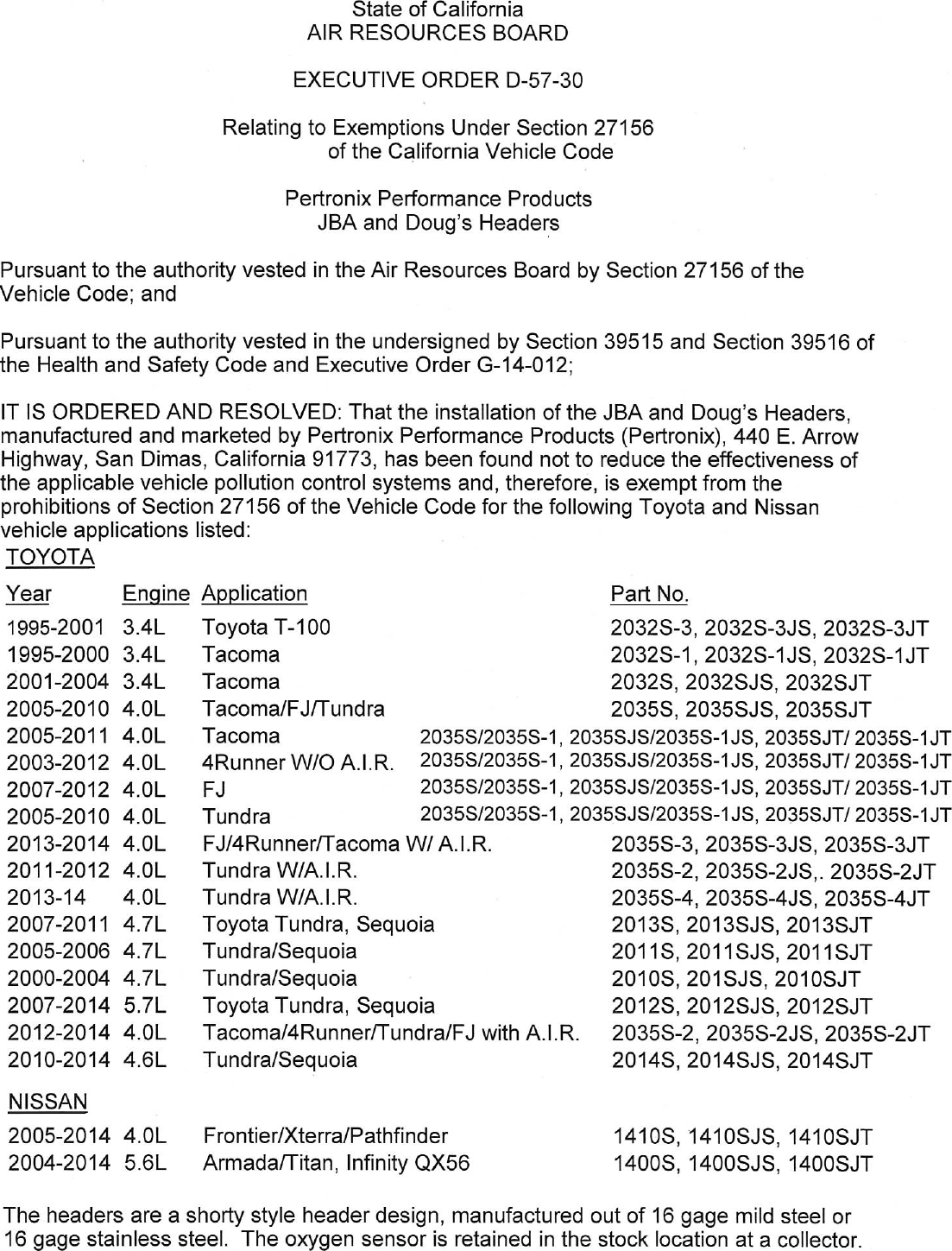

                                      State of California
                                  AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—57—30

                         Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                               Pertronix Performance Products
                                  JBA and Doug‘s Headers

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the JBA and Doug‘s Headers,
manufactured and marketed by Pertronix Performance Products (Pertronix), 440 E. Arrow
Highway, San Dimas, California 91773, has been found not to reduce the effectiveness of
the applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the following Toyota and Nissan
vehicle applications listed:
 TOYOTA
Year         Engine Application                                  Part No.
1995—2001    3.4L     Toyota T—100                               20325—3, 2032S—3JS, 2032S—3J1T
1995—2000    3.4L     Tacoma                                     20325—1, 2032S—1JS, 2032S—1JT
2001—2004    3.4L     Tacoma                                     20325, 2032SJS, 2032SJT
2005—2010    4.0L     Tacoma/FJ/Tundra                           2035S, 2035SJS, 2035SJT
2005—2011 4.0L        Tacoma                20359/2035S—1, 2035SJS/2035S—1JS, 2035SJT/ 2035S—1JT
2003—2012 4.0L        4Runner W/O A.LR.     20359/2035S—1, 2035§8JS/2035S—1JS, 2035SJT/ 20358—1JT
2007—2012 4.0L        FJ                    20359/2035S—1, 2035SJS/2035S—1JS, 2035SJT/ 2035S—1JT
2005—2010 4.0L        Tundra                20359/2035S—1, 20358J$/2035S—1JS, 2035SJT/ 2035S—1JT
2013—2014 4.0L        FJ/ARunner/Tacoma W/ A.1.R.                2035S—3, 20355—3JS, 2035S—3JT
2011—2012 4.0L        Tundra W/A.L.R.                            20358—2, 2035S—2J8,. 2035S—2JT
2013—14   4.0L        Tundra W/A.L.R.                            20358—4, 2035S—4JS, 2035S—4JT
2007—2011 4.7L        Toyota Tundra, Sequoia                     2013S, 2013SJS, 2013SJT
2005—2006    4.7L     Tundra/Sequoia                             20118, 2011SJS, 2011SJT
2000—2004    4.7L     Tundra/Sequoia                             2010S, 201SJS, 2010SJT
2007—2014    5.7L     Toyota Tundra, Sequoia                     20125, 2012SJS, 2012SJT
2012—2014    4.0L     Tacoma/ARunner/Tundra/FJ with A.L.R.       2035§S—2, 2035S—2JS, 2035S—2JT
2010—2014    4.6L     Tundra/Sequoia                             2014S, 2014SJS, 2014SJT

NISSAN
2005—2014 4.0L        Frontier/Xterra/Pathfinder                    1410S, 1410SJS, 1410SJT
2004—2014 5.6L        Armada/Titan, Infinity QX56                   1400S, 1400SJS, 1400SVT

The headers are a shorty style header design, manufactured out of 16 gage mild steel or
16 gage stainless steel. The oxygen sensor is retained in the stock location at a collector.


The headers may include a connecting Y—pipe that is also manufactured out of 16 gage
mild steel or 16 gage stainless steel.

This Executive Order is valid provided that the installation instructions for the JBA and
Doug‘s Headers will not recommend tuning the vehicle to specifications different from those
of the vehicle manufacturer.

Changes made to the design or operating conditions of the JBA and Doug‘s Headers, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order is granted based on prior submitted emissions test data generated on
a 2010 model year 5.7L Toyota Tundra, modified with the JBA header. Test results
showed that emission levels, with the header installed, met the applicable emission
standards when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test
cycle and the Supplemental Federal Test Procedure (SFTP—USO6) test cycle. Examination
of the OBD II system showed that the header did not affect OBD II system operation.

Results from emissions testing conducted at the Auto Club Emissions Laboratory, located
in Diamond Bar, California, are shown below (in grams per mile).

    2010 5.7L Tundra               CVS—75 FTP                        SFTP USO6
                           NMOG     CO NOx HCHO                  NMHC+NOx     co
    Standards*             0.040    1.7 0.05 0.008                  0.60       11.8
    Device Test 1          0.035     0.6   0.01   0.001               0.02      0.2
    Device Test 2          0.032     0.6   0.01   0.001
    Average                0.034     0.6   0.01   0.001
    Average widf           0.038     0.7   0.01   0.001
*LEV II ULEV CVS—75 FTP 50K emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE JBA AND DOUG‘S
HEADERS.

Marketing of the JBA and Doug‘s Headers using any identification other than that shown in
this Executive Order or marketing of the JBA and Doug‘s Headers for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.




                    PERTRONIX — JBA AND DOUG‘S HEADERS — D—57—30


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held —within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this       /8%\“   day of April 2014.



                          M      +       _
                    ¢&"       (Aartrca)
                 Annétte Hebert, Chief
                   missions Compliance, Automotive Regulations and Science Division




                  PERTRONIX — JBA AND DOUG‘S HEADERS — D—57—30


o
