Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 28, 2013.
As of Wednesday, June 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
RLK-30032002-2006 Cadillac Escalade, EXT 5.3L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-706
  • Executive Order 706 / D706
  • ARB # D-706
  • Executive Order No: D-706
  • C.A.R.B. No. D-706
  • Resolution D-706
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-706 PDF

D-706 Document:

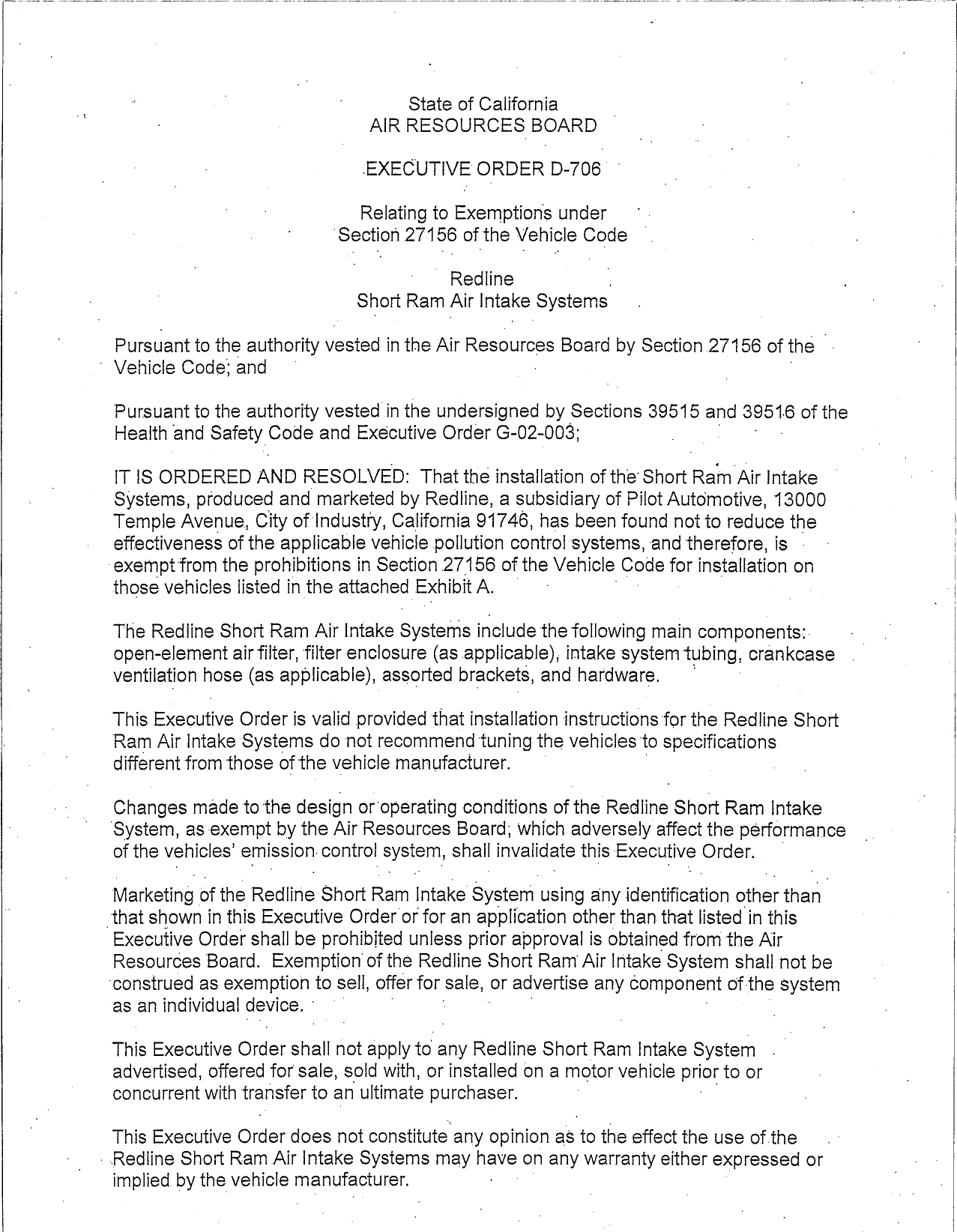

                                      State of California
                                 AlIR RESOURCES{ BOARD

                                EXECUTIVE ORDER D—706

                               Relating to Exemptions under
                            ‘Section 27’]56 ofthe Vehicle Code

                                         _ Redline
                               Short Ram Alr lntake Systems

  Pursuant to the authorlty
                          vested in the Air Resources Board by Section 27156 of the |
~ Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
 Health and Safety Code and Executive Order G—02—008;

 IT IS ORDERED AND RESOLVED: That the installation of theShort Ram Air Intake
 Systems, produced and marketed by Redline, a subsidiary of Pilot Automotive, 13000
Temple Avenue, City of Industry, California 91746, has been found not to reduce the
 effectiveness of the applicable vehicle pollution control systems, and therefore, is _
exempt from the prohlbmonsin Section 27156 of the Vehlcle Code for installation on
those vehicles listed in the attached Exhlblt A. _

 The Redline Short Ram Air Intake Systems molude the following main components:
 open—element air filter, filter enclosure (as applicable), intake system Tublng, crankcase
 ventilation hose (as applicable), assorted brackets and hardware.

 This Exeoutlve Order is valid provided that installation instructions for the Redline Short
 Ram Air Intake Systems do not recommend tuning the vehicles to specifications
 different from those of the vehicle manufacturer.     '

 Changes made to the design or operating conditions of the Redline Short Ram Intake
 System, as exempt by the Air Resources Board; which adversely affect the performance
 of the vehlcles emlssmn control system shall lnvahdate this Exeoutlve Order.

 Marketmgof the Redlme Short Ram Intake System using any ldentn‘lcatlon other than
that shown in this Executive Order orfor an application other than that listed in this
  Executive Order shall be prohibited unless prior approval is obtained fromthe Air
  Resources Board. Exemptionof the Redline Short RamAir Intake System shall not be
 ‘construed as exemption to sell, offer for saleor advertlse any component of—the system
 as an individual deVIce      '             —

 This Executive Order shall not apply ’to any Redline Short Ram Intake System
 advertised, offered forsale, sold with, or installed on a motor vehicle pnor to or
 concurrent with transfer to an ultimate purchaser.

 This Executive Order does not oonstitute any opinion as to the effect the use of the
—Redline Short Ram Air Intake Systems may have on any warranty either expressed or
 implied by thevehicle manufacturer


                                               000CCCSSSCASC
                                                         —   mesn222u22




                                                    2.


  This Executive Order is granted based on previous emission test results in the modified
  configuration using the Cold—Start CVS—75 Federal Test Procedure, Supplemental
  Federal Test Procedure (SFTP USO8), and an examination of the On—Board Diagnostic
  11 (OBD—II) system. A 2011 model—year Honda Civic 1.8 Liter (engine test group
  BHNXVO1.8HB9) was used for the evaluation. Results from emissions testing
  conducted atAutomoblle Club of Southern California, are shown below (in grams per
. mile):

  Frpo    o 0        (50K 0_                    ‘NMoG                CO. _           NoOx           HcHo
                 Emission Level   _              0.029              0.4286            0.02          0.0061
                (Avg.,DF applied)   >                                '

                      stD            —          —0.040             S1fo          o   00500          0.008
                     fok             _         NMoGe                 co              Nox            Hcko
                Emission Level                   0.037       |      0.466            0.0325         0.0001
                (Avg.,DF applied)                        {   C                               2

     |                STD        >       .00     00550000           24               0.07           0.011
 Usos            oo         0                          NMHC+NOx _ _ /_ co
                 Emission Level                          0.025 _      — 0419
                      STD                .                       0.140       _                8.0

 The emission test results in the modified configuration were below the applicable  .
 certification standards. Examination of the OBD [I system showed the Short Ram Air >
 Intake Systems do not affect OBD II operation.

 The Air Resources Board reserves the nghtin the future to review this Executive Order                                       (
 and the exemption provided herein to assure that the exempted add—on or modified part:                          60         U
 continues to meet the standards and procedures of California Code of Regulations, Title                                    |
—13, Section 2222,.et seq. Further, if test results or other evidence provides the ARB —                                   |
 with reason to suspect that the Redline Short Ram Air Intake System will affect the                                      |
 durability of emission control systems, Redline shall be required to submit durability                                  |
 data to show that the durability of vehicle emission control systems are not, in fact,  |                   .          “
 affected and/or that the add—on or modified parts demonstrate adequate durability.                                   |
                                                                                                                      |
                                                                                                                      |



                        REDLINE — SHORT RAM AIR INTAKE SYSTEMS — D—706


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY.OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF REDLINE S SHORT
RAM AIR INTAKE SYSTEMS.

No claim of any kind, such as "Approved by the Air Resources Board," may be made —
with respect to the action takenherein in any advertising or other oral or written
communication

Violation of any of the above conditions shall be grounds for revocation of this Executive .
Order. The Executive Order may be revoked only after a ten —day written notice of —
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing .
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order maynot be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this %Q&day of March 2013.




                                          Annette Hebert, Chief
                                    - %Pv%’bile Source Operations Division




                        * REDLINE — SHORT RAM AIR INTAKE syYSTEMS — D—7086


                                              Exhibit A
    Make                Model           Model Year _         DISP (L)     Part Number          Remarks

  Cadillac          Eséalade, EXT       2002—2006              5.3         RLK—3003 |
  Cadillac         ‘Escalade, ESV       2002—2006               6          RLK—3003

 Chevrolet           Avalanche         .2002—2006              5.3         RLK—3003
‘| Chevrolet          Silverado         1999—2006              4.8 |       RLK—3003
 Chevrolet            Silverado           2007          4.8, 5.3, 6.0      RLK—3003
 Chevrolet            Silverado         2001—2005 °             6          RLK—3003 _
 Chevrolet            Silverado         1999—2006          5.3, 6.0        RLK—3003 _
 Chevrolet          Silverado SS        2003—2007             ~6           RLK—3003
 Chevrolet             Tahoe:         © 2000—2006      | 4.8,5.3,6.0       RLK—3003
 Chevrolet           Suburban          2000—2006           5.3, 6.0        RLK—3003 _

 Chevrolet              Blazer —        1996—2003            4.3          ‘RLK—3004
 Chevrolet               S10            1996—2006             4.3          RLK—3004

    GMC              Sietrra iSOO       1999—2006             4.8          RLK—3003
    GMC           Sierra 1500, 2500       2007         _ 4.8, 5.3,6.0 |    RLK—3003
    GMC        Sierra 1500HD, 2500HD | +2001—2005         '    6           RLK—3003
    GMC v           — Sierra 2500      1999—2006            5.3, 6.0       RLK—3003
    GMC                Yukon, XL       2000—2006            4.8, 5.3       RLK—3003
    GMC           _ Yukon Denali      ©2001—2004                6 ~        RLK—3003

   GMC                 Jimmy           1996—2003            — 4.3          RLK—3004
   GMC                Sonoma           1996—2003             4.3           RLK—3004

    Ford: /          Expedition         1994—2004           4.6, 5.4       RLK—3008
    Ford          F150, F250, F350     1997—2003            4.6, 5.4 —     RLK—3008

    Ford             F250, F350        1999—2004              7.3         RLK—'3009
   Ford _            Excursion         1999—2004            7.3           RLK—3009

    Ford              Mustang         2005*—2006              4.6         RLK—3010      |* Only 2005 MY built
                                                                                          after 4/30/2005.

    Ford                F150           2004—2008              5.4         ‘RLK—3011

  Lincolin          «Navigator         1998—1999              5.4         RLK—3008

  Lincbln            Mark LT           2006—2008        C     54          RLK—3011

   Dodge          RAM 1500, 2500       1991—2001            5.2,5.9 /     RLK—3012
