Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 10, 1982.
As of Monday, November 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1982 and older model year motor vehicles that are powered by gasoline with conventional carburetors and mechanical or electric fuel pumps with and without recirculation systems.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-75-5
  • Executive Order 75-5 / D75-5
  • ARB # D-75-5
  • Executive Order No: D-75-5
  • C.A.R.B. No. D-75-5
  • Resolution D-75-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-75-5 PDF

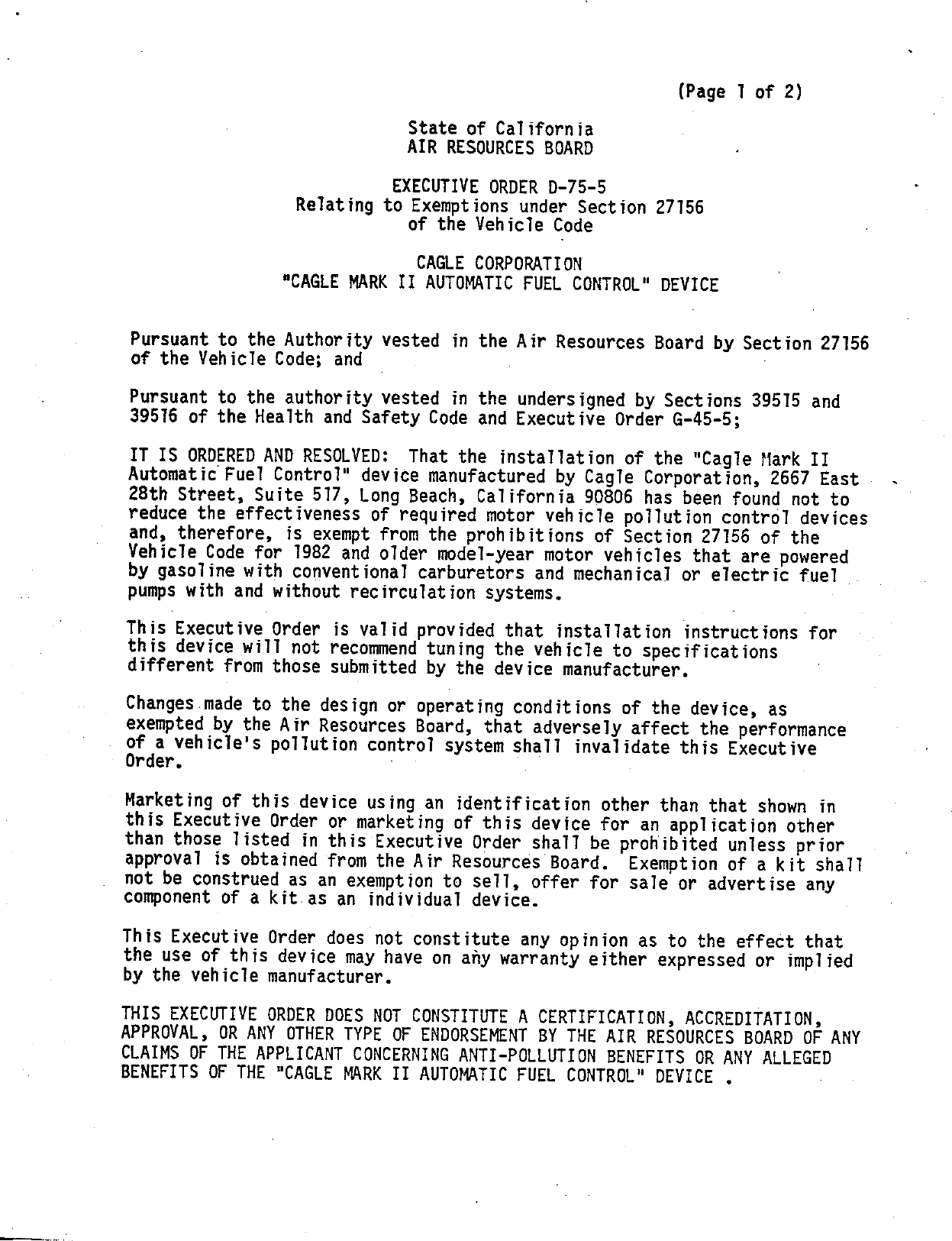

D-75-5 Document:


CARB_D-75-5

                                                         (Page 1 of 2)

                               State of California
                               AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—75—5
                 Relating to Exemptions under Section 27156
                             of the Vehicle Code

                              CAGLE CORPORATION
                "CAGLE MARK II AUTOMATIC FUEL CONTROL" DEVICE


Pursuant to the Authority vested in the Air Resources Board by Sectlon 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESQLYED: That the installation of the "Cagle Mark II
Automatic Fue! Control" device manufactured by Cagle Corporation, 2667 East
28th Street, Suite 517, Long Beach, California 90806 has been found not to
reduce the effectiveness of required motor vehicle pollution control devices
and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for 1982 and older model—year motor vehicles that are powered
by gasoline with conventional carburetors and mechanical or electric fuel
pumps with and without recirculation systems.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes .made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
8fda vehicle‘s pollution control system shall invalidate this Executive
 rder.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.   Exemption of a kit shall
not be construed as an exemption to sell, offer for sale or advertise any
component of a kit. as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.
THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS 0F THE APPLICANT CONCERNING ANTI—PQOLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE "CAGLE MARK II AUTOMATIC FUEL CONTROL®" DEVICE .


CAGLE CORPORATION                        ‘ —          EXECUTIVE ORDER D—75—4
             .                                            (Page 2 of 2)


No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violatifon
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644. (a) No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board. No person shall sell,
    offer for sale, advertise, or represent any motor vehicle poliution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executfve Order will be
submitted to the Attorney General of California for such action as he deems
advisable.
Executive Order No. D—75—4, dated August 20, 1981, is superseded and of no
further force and effect.                                  '

Executed at El Monte, California, this         I    day of November, 1982.


                                         4
                                         K. D. Drachand, Chief
                                         Mobile Source Control Division


               STATE OF CALIFORNIA

               AIR RESOURCES BOARD




EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC
   FUEL CONTROL® DEVICE FOR EXEMPTION FROM THE
  PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
   ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
           CALIFORNIA ADMINISTRATIVE CODE




                NOVEMBER 1, 1982


                                    SUMMARY



      Cagle Corporation requested an update of their existing exemption,

Executive Order No. D—75—4, from the prohibition in Vehicle Code Section 27156

for their "Cagle Mark II Automatic Fuel Control" fuel pressure regulator for

automobiles.   In particular, Cagle requested that the exemption be updated to

include all 1982 model—year gasoline—powered vehicles with conventional

carburetors.

      Based on previous emissions tests performed on 1979 model—year vehicles,

and an engineering evaluation of 1979 through 1982 model—year vehicle‘s fuel

systems, the staff has concluded that the Cagle fuel pressure regulator will

have no adverse effect on emissions from 1982 model year automobile.

      The staff recommends granting Cagle‘s request to update the exemption.


                                 CONTENTS



                                                Page Number



SUMMARY



CONTENTS                                            11



I.     INTRODUCTION



II.    CONCLUSIONS



III.   RECOMMENDATIONS



IV.    DEVICE DESCRIPTION AND OPERATION



       DISCUSSION



APPENDIX




                                          11.


Evaluation of "Cagle Corporation Mark II Automatic Fuel Control" Device
for Exemption from the Prohibitions in Vehicle Code Section 27156 in
égsgrdance with Section 2222, Title 13 of the CalTifornia Administrative


I.    INTRODUCTI ON
      Cagle Corporation of 2667 East 28th Street, Suite 517, Long Beach

California 90806 requested by letter dated August 20, 1982, an update of

the existing Air Resources Board‘s Executive Order No. D—75—4.   The

applicant requested that the exemption from the prohibitions in Vehicle

Code Section 27156 for their "Cagle Mark II Automatic Fuel Control"

device be updated to include all 1982 and older model—year motor vehicles

that are powered by gasoline engines with conventional carburetors and

mechanical or electrical fuel pumps with and without fuel recirculation
systems.

II.    CONCLUSION

      Previous Air Resources Board (ARB) confirmatory emissions tests

showed that the use of the "Cagle Mark II Automatic Fuel Control" device

did not have an adverse effect on the exhaust emission control system of

1979 model—year vehicles.   The staff then granted an exemption from the
Vehicle Code for 1979 and older model—year vehicles.

      Updates to include 1980 and 1981 model—year vehicles were granted

on the basis that the vehicles fuel system on 1979, 1980 and 1981 were

similar in design.

      An engineering evaluation of the vehicle‘s fuel system design on

1982, 1981, 1980, and 1979 model—year vehicles indicate that the use of

the Cagle device should not have an adverse effect on 1982 model—year

vehicles.


III.   RECOMMENDATION
       Based on the above, the staff concluded that granting the Cagle

Corporation an exemption from the prohibitions in Vehicle Code Section

27156 for its "Cagle Mark II Automatic Fuel Control" device for 1982 and

older model vehicles that are pbwered by gasoline engines with

conventional carburetors and mechanical or electrical fuel pumps with or

without fuel recirculation system is justified.     The staff, therefore,

recommends that Executive Order No. D—75—5 be adopted.

IV.    DEVICE DESCRIPTION AND OPERATION

       The "Cagle Mark II Automatic Fuel Control" is a fuel pressure

regulator installed between the fuel pump and the carburetor.     It has

three external fittings: (1) a fitting at the top for measuring intake

manifold vacuum; (2) an inlet fitting marked "PUMP" for connection to the

fuel pump; and (3) an outlet fitting market "CARB" for connection to the

carburetor.   It is designed to reduce the fuel supply pressure under low

fuel demand conditions but sti]]lmaintain the required fuel flow to the

carburetor under all operating modes.     The device is controlled by intake

manifold vacuum operating on a spring balanced Buna—N diaphragm.

       A cross sectional view of the device is shown in the Appendix.

       For a more detailed description of the device and its operation,

the reader is referred to ARB Staff Report dated December 17, 1980,

entitled "Cagle Corporation Mark II Automatic Fuel Control Device for

Compliance with the Requirements of Section 27156 of the Vehicle Code".

v.     DISCUSSION

       Prior to issuing Executive Order No. D—75—2 (which exempted 1979

and older model—year vehicles) the staff performed comparative exhaust

                                          2.


emissions tests on a 1979 Ford Fairmont with a 302 CID engine and on a

1979 Chevrolet with a 231 CID engine.         The results of these tests were as

follows:

                               1979 Ford Fairmont
                    ARB Emission Data — Cold Start CVS—75

                                         Exhaust Emissions
                                         (Grams per miles)           Fuel Economy
                                    HC            CO           NOx      (mpg)

                  Baseline         0.492         3.37         2.46       15.2

                  Device           0.517         3.65         2.48       15.2


                            1979 Chevrolet Malibu
                    ARB Emission Data — Cold Start CVS—75

                                         Exhaust Emissions
                                         (Grams per miles)           Fuel Economy
                                   _
                                   TE _0                                (mpg)
                  Baseline         0.440         9.43         0.89       15.2

                  Device           0.353        6.21          0.89       16.0


      In addition, fuel pressure measurements were taken before and after

the regulator for various manifold vacuums.            The results were as follows:

Manifold Vacuum                Fuel Pressure (#/in?)                    Change
 (inches Hg)          Before Regulator        After Regulator         in Pressure

      15                     4.2                       2.55               1.65

      13                     4.2                       2.50               1.70

      11                     4.2                       2.50               1.70

       9                     4.2                       3.05               1.15

       7                     4.2                       3.70               0.50
       5                     4.2                       3.88               0.32

       3                     3.6                       3.60               0.00


      Then on September 9, 1980, and on June 15, 1981, the applicant

requested, via letters, that the exemption be updated to include 1980 and

1981 model—year vehicles, respectively.     In response to those requests,

the staff compared the vehicle‘s fuel system design on some 1979, 1980

and 1981 model—year vehicles.     Since no significant differences, that

could adversely affect exhaust emissions, were noted, no additional tests

were requested for the updates.

      In response td this request, the staff compared the vehicle‘s fuel

system on some 1982, 1981, 1980 and 1979 model—year vehicles.     No

significant differences were noted between the vehicle‘s fuel system

design even though newer cars tend to operate more fuel efficient.     The

staff, therefore again, did not recommend or perform any additional tests.


APPENDIX




                             State of California

                             AIR RESOURCES BOARD

                        BUSINESS AND PROFESSIONS CODE


17200.   Unfair competition; law governing

   As used in this chapter, unfair competition shall mean and include
unlawful, unfair or fraudulent business practice and unfair, deceptive,
untrue or misleading advertising and any act prohibited by Chapter 1
{commencing with Section 17500) of Part 3 of Division 7 of the Business
and Professions Code.


17500.   False or misleading statements.     It is unlawful for any person,
firm, corporation or association, or any employee thereof with intent
directly or indirectly to dispose of real or personal property or to
perform services, professional or otherwise, or anything of any nature
whatsoever or to induce the public to enter into any obligation relating
thereto, to make or disseminate or cause to be made or disseminated before
the public in this State, in any newspaper or other publication, or any
advertising device, or by public outcry or proclamation, or in any other
manner or means whatever, any statement, concerning such real or personal
property or services, professional or otherwise, or concerning any
circumstance or matter of fact connected with the proposed performance or
disposition thereof, which is untrue or misleading, and which is known,
or which by the exercise of reasonable care should be known, to be untrue
or misleading, or for any such person, firm, or corporation to so make or
disseminate or cause to be so made or disseminated any such statement as
part of a plan or scheme with the intent not to sell such personal property
or services, professional or otherwise, so advertised at the price stated
therein, or as so advertised. (Added Stats. 1941, c. 63, p. 727, §1, as
amended Stats. 1955, c. 1358, p. 2443, §1.)




                                                                              MS—82—16



Document Created: 2005-09-01 12:45:13
Document Modified: 2005-09-01 12:45:13

Previous E.O. D-75-4 | Previous E.O. D-74 | Next E.O. D-75-6 | Next E.O. D-76
