Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 6, 2012.
As of Thursday, August 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDF1998 to 2002, 2010 to 2012 model year 5.7L and 6.2L Camaros and Firebirds, and 1997 to 2012 5.7L, 6.0L, and 6.2L CorvettesThe E-Force Supercharger Kit consists of the following main components: Eaton supercharger, intake manifold, bypass valve, a set of high flow injectors, replacement in-tank fuel pump, intercooler, modified air cleaner, and a reflashed ECM. The stock crankshaft pulley, throttlebody, mass air flow sensor, and thermostat are retained. The tuner used to reflash the ECM is designed to download OEM calibration updates, non emission related upgrades, and patches or fixes in the firmware. Emission-related data files cannot be modified by the end user. All supplied fuel hoses are AvonÔÇÖs CADbar 9000 series, and fuel and vapor line connectors supplied with the kit are OEM ÔÇô equivalent parts. Breather hoses may be replaced with an SAE30R9 rated hose. The stock air cleaner lid for the Camaro is replaced with a new air box lid. The new lid contains a hydrocarbon adsorber which Edelbrock installs in a stock location and orientation with heat stakes. The hydrocarbon adsorber is from GM part number 92230374. For the Corvette, the air cleaner and intake air tubing is removed and replaced by a new open element air filter and intake tube. The new intake tube includes the GM part number 15298966 hydrocarbon adsorber in its stock location and orientation.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-80
  • Executive Order 215-80 / D215-80
  • ARB # D-215-80
  • Executive Order No: D-215-80
  • C.A.R.B. No. D-215-80
  • Resolution D-215-80
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-80 PDF

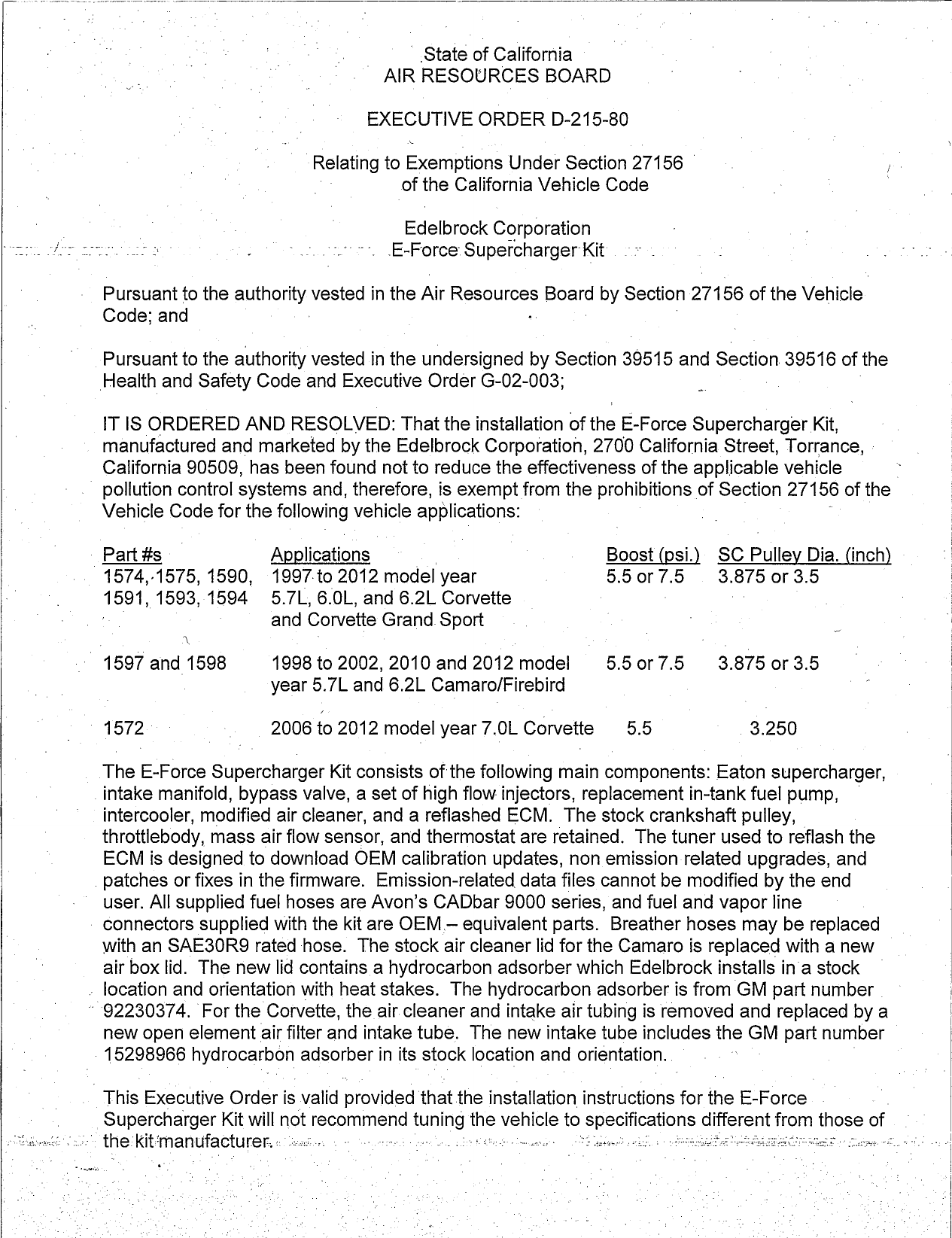

D-215-80 Document:



                                       _‘ State of California
                                         AIR RESOURCES BOARD

                                       EXECUTIVE ORDER D—215—80

                          Relating to Exemptions Under Section 27156 /                                                                       o
                                              of the California Vehicle Code

                                               Edelbrock Corporation
                                          .E—Force: SuperchargerKit:

  Pursuant to the authorrtyvested in the Arr Resources Board by Sectron 27156 of the Vehrcle
  Code; and

 Pursuant to the authorlty vested in the undersrgned by Section 39515 and Sectlon 39516 of the
 Healthand Safety Code and Executive Order G—02—003;                             .

  IT IS ORDERED AND RESOLVED: That the installation of the E—Force Supercharger Kit,
  manufactured and marketed by the Edelbrock Corporation, 2700 California Street, Torrance, —
  California 90509, has been found not to reduce the effectiveness of the applicable vehicle
_ pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
  Vehicle Code for the followmg vehicle appllcatlons

—Part #s          Agghcatlons       |                                                      Boost(psi.) SC Pullev Dia. (inch)
 1574,1575, 1590, 1997 to 2012 model year                                                  5.5 or7.5   3.875 or 3.5
  1591, 1593, 1594     5.7L, 6.0L, and 6.2L Corvette                                   '                                          .
  us            '     and Corvette Grand. Sport
           A                j                                         .                                   '
  1597 and 1598       1998 to 2002, 2010 and 2012 model                                    5.5 or7.5          3.875 or 3.5
                      year 5.7L and 6.2L Camaro/Firebird

' 1572 h       o      2006 to 2012 model year 7.0L Cervette                                  5.5                    . 3.250

   The E—Force Supercharger Kit consists ofthe following main components Eaton supercharger,
 . intake manifold, bypass valve, a set of high flowinjectors, replacement in—tank fuel pump,
   intercooler, modified air cleaner, and a reflashed ECM. The stock crankshaft pulley,
   throttlebody, mass air flow sensor, and thermostat are retained. The tuner used to reflash the
  ECM is designed to download OEM calibration updates, non emission related upgrades, and
   . patches or fixes in the firmware. Emission—relateddata files cannot be modified by the end
_ user. All supplied fuel hoses are Avon‘s CADbar 9000 series, and fuel and vapor line
  — connectors supplied with the kit are OEM — equivalent parts. Breather hoses may be replaced
     with an SAE30RY rated hose. The stock air cleaner lid for the Camaro is replaced with a new
     air box lid. The new lid contains a hydrocarbon adsorber which Edelbrock installs in a stock _
 . location and orientation with heat stakes. The hydrocarbon adsorber is from GM part number .
 ©g2230374. For the Corveftte, the air cleaner and intake air tubing is removed and replaced by a
     new open element airfilter and intake tube. The new intake tube includes the GM part number
 15298966 hydrocarbon adsorberin rts stock location and orlentatlon                                             >

| Thrs Executive Order is valid provrded that the mstallatlon mstructrons for the E— Force 0
  Supercharger Kit will notrecommend tunlngthe vehrcle tospecmcatlons dlf‘ferent from those of
  the klt manUfaCtUl'er         ho n    atad on ut ho   uts 42   hm Pn mm ie   .   TD megeel uen dn ioiel ceced Pemmiein rriendo cuebaiete nhuiy t Vn en n


                                              Ao   -2-




Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any E—Force Supercharger Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the E—Force Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is obtained
from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.                                                           .

This Executive Order is granted based on prior submitted emission test data, generated in
support of Executive Order D—215—76, on one test vehicle modified with the E—Force
Supercharger Kit. Test results showed that emission levels, with the supercharger kit
installed, met the applicable emission standards when tested using the Cold—Start CVS—75
Federal Test Procedure (FTP) test cycle and the Supplemental Federal Test Procedure
(SFTP) test cycle. Examination of the OBD II system showed that the supercharger kit did not
affect OBD II system operation. Results from emissions testing conducted at the Auto Club
Emissions Laboratory, located in Diamond Bar, California, are shown below (in grams per
mile).

    2010 6.2L. Corvette            CVS—75 FTP                          SFTP USO6/SC03
                           NMOG     CO NOx               HCHO     NMHC+NOx      CO
    Standards*, UL         0.070    21   0.04            0.011      0.14/0.20   8.0/2.7
    Device Test 1          0.036    1.0 0.01             0.000      0.04/0.03   5.2/1.0
    Device Test 2          0.036     0.9 0.01            0.000
    Average                0.036     1.0   0.01          0.000
    Average widf           0.049     1.2   0.03          0.001

*LEV II ULEV CVS—75 FTP emissions standards.
The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section
2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
SUPERCHARGER KIT.


                                             Leks


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—daywritten notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed=~ ~~ <—
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request  |
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.                  '                                                         '

Executed at El Monte, California, this   _. é       day of March 2012. —




                                    Annette Hebert, Chief |
                                    Mobile Source Operations Division




            _ EDELBROCK —E—FORCE SUPERCHARGER KIT‘_:.D_21"5_.8'_O‘ s



Document Created: 2012-03-12 14:27:37
Document Modified: 2012-03-12 14:27:37
