Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 14, 2011.
As of Thursday, June 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
1996 to 2012 Ford V8 MustangsThe 2011 and 2012 model year 5.0L Ford Mustang TS Series Supercharger Kit consists of the following main components: Twin screw supercharger, intercooler, intake manifold, bypass valve, reflashed ECM, 39 pound high flow injectors, and a mass air flow sensor. The breather and vacuum hoses may be replaced with SAE30R9 rated hose. Boost is limited to a maximum of 12 psi. The stock crankshaft pulley, fuel pump, air filter housing in a stock orientation, and radiator thermostat are retained during installation. The 2005 to 2010 model year 4.6L Ford Mustang TS Series Supercharger Kit consists of the following main components: Twin screw supercharger, intercooler, intake manifold, bypass valve, 39 pound high flow injectors, mass air flow sensor, reflashed ECM, open element air filter on 2005 model year built after April 30, 2005 and 2006 model year Mustangs only, and electronic fuel pump booster. The stock air cleaner housing is retained on 2005 model year built on or before April 30, 2005, and 2007 to 2010 model year Mustangs. Air cleaner is in a stock orientation. The breather and vacuum hoses may be replaced with an SAE30R9 rated hose. The stock crankshaft pulley and radiator thermostat are retained.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-21
  • Executive Order 271-21 / D271-21
  • ARB # D-271-21
  • Executive Order No: D-271-21
  • C.A.R.B. No. D-271-21
  • Resolution D-271-21
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-21 PDF

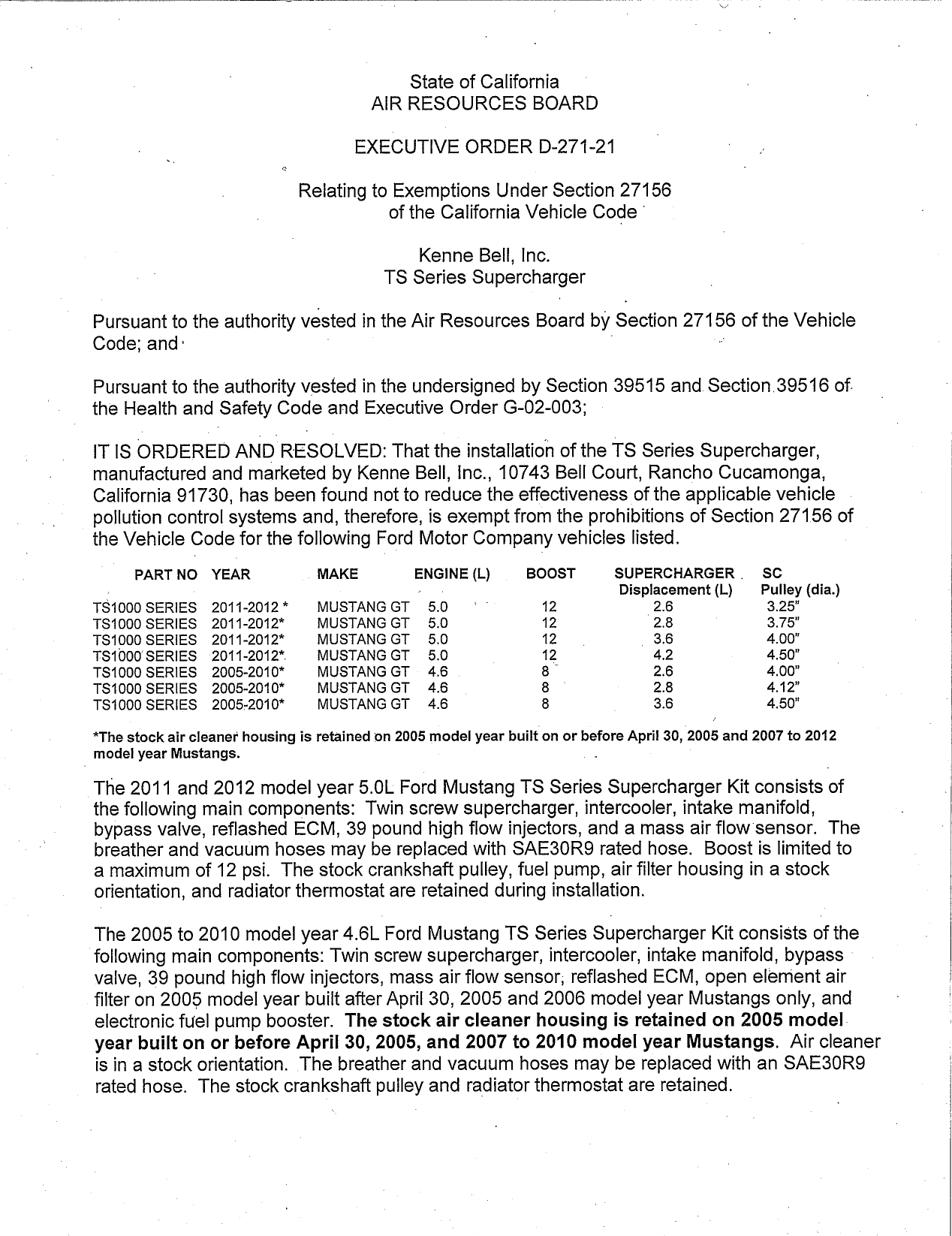

D-271-21 Document:



                                                 State of California
                                          AIR RESOURCES BOARD

                                       EXECUTIVE ORDER D—271—21
                               Relating to Exemptions Under Section 27156
                                          of the California Vehicle Code

                                                  Kenne Bell, Inc.
                                            TS Series Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and:                         '                                          |

Pursuant to the authority vested in the undersigned by Section 39515 and Section.39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger,
manufactured and marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga,
California 91730, has been found not to reduce the effectiveness of the applicable vehicle _
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the following Ford Motor Company vehicles listed.
     PART NO     YEAR            MAKE            ENGINE (L)      BOOST            SsUPERCHARGER .      SC
  +                                              e                                 Displacement (L.)   Pulley (dia.)
TS1000 SERIES    2011—2012 *     MUSTANG    GT     5.0   ‘~        12                  —2.6             3.25"
TS1000 SERIES    2011—2012*      MUSTANG    GT     5.0             12                   2.8     ‘       3.75"
TS1000 SERIES    2011—2012*      MUSTANG    GT     5.0             12    _            . 3.6             4.00"
TS1000 SERIES    2011—2012*.     MUSTANG    GT     5.0             12                   4.2             4.50"
TS1000 SERIES    2005—2010*      MUSTANG    GT    4.6              8 ~                  2.6             4.00"
TS1000 SERIES    2005—2010*      MUSTANG    GT      4.6            8 ~                  2.8             4.12"
TS1000 SERIES    2005—2010*      MUSTANG    GT      4.6            8                    3.6             4.50"

*The stock air cleaner housing is retained on 2005 model year built on or before April 30,'2005 and 2007 to 2012
model year Mustangs.                                                      2.

The 2011 and 2012 model year 5.0L Ford Mustang TS Series Supercharger Kit consists of
the following main components: Twin screw supercharger, intercooler, intake manifold,
bypass valve, reflashed ECM, 39 pound high flow injectors, and a mass air flow sensor. The
breather and vacuum hoses may be replaced with SAE30R9 rated hose. Boost is limited to
a maximum of 12 psi. The stock crankshaft pulley, fuel pump, air filter housing in a stock
orientation, and radiator thermostat are retained during installation.

The 2005 to 2010 model year 4.6L Ford Mustang TS Series Supercharger Kit consists of the
following main components: Twin screw supercharger, intercooler, intake manifold, bypass —
valve, 39 pound high flow injectors, mass air flow sensor; reflashed ECM, open element air
filter on 2005 model year buiilt after April 30, 2005 and 2006 model year Mustangs only, and
electronic fuel pump booster. The stock air cleaner housing is retained on 2005 model
year built on or before April 30, 2005, and 2007 to 2010 model year Mustangs. Air cleaner
is in a stock orientation. The breather and vacuum hoses may be replaced with an SAE30R9
rated hose. The stock crankshaft pulley and radiator thermostat are retained.


This Executive Order is valid provided that the installation instructions for the TS Series
Supercharger will not recommend tuning the vehicle to specifications‘ different from those
submitted by the device manufacturer.

Changes made to the desigh or operating conditions of the TS Series Supercharger, as
exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TS Series Supercharger advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the TS Series Supercharger using any identification other than that shown in this
Executive Order or marketing of the TS Series Supercharger for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtained from
the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the TS Series
Supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emission test data generated on two test vehicles
modified with the TS Series Supercharger Kit. Test results showed that emission levels, with
the supercharger kit installed, met the applicable emission standards when tested using the
Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the Supplemental Federal
Test Procedure (SFTP) test cycle. Examination of the OBD II system showed that the
supercharger kit did not affect OBD II system operation. Results from emission testing
conducted at the Automotive Testing and Development Services, Inc., of Ontario, California
are listed below (in grams per mile) with deterioration factors applied.

   2007 model year Ford Mustang               CVS—75 FTP
                             NMOG             CO    NOx             HCHO
   Standards*               0.040             1.7   0.05            0.008
   Device Test              0.027             1.3   0.01            0.001

                                      USO6/SC03
                               NMHC+NOx               CO
   Standards 4k                  0.14/0.20            8.0/2.7
   Device                        0.13/70.01           1.1/0.7

    2012 5.0L Mustang

                      SFTP USO6
                   NMHC+NOx     CO
    Standards        0.14       8.0
    Device           0.04       1.0

*LEV |I ULEV CVS—75 FTP emissions standards.


                KENNE BELL, INC. — TS SERIES SUPERCHARGER — D—271—21


  The Air Resources Board reserves the right in the future to review this Executive Order and the
  exemption provided herein to assure that the exempted add—on or modified part continues to
  meet the standards and procedures of Title 13, California Code of Regulatlons Section 2222,
  et seq.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
  RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TS SERIES
  SUPERCHARGER.

  No claim of any kind, such as "Approved by the Air Resources Board", may be made with
  respect to the action taken herein in any advertising or other oral or written communication.

  Violation of any of the above conditions shall be grounds for revocation of this order. The
  order may be revoked only after a ten—day written notice of intention to revoke the order, in
  which period the holder of the order may request in writing a hearing to contest the proposed
_ revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
  and the order may not be revoked until a determination is made after the hearing that grounds
  for revocation exist.

  Executed at El Monte, California, this :___ f   fi   day of October 2011.



                                      Annette Hebert, Chief
                                       Mobile Source Operations Division




                  KENNE BELL, INC. — TS SERIES SUPERCHARGER — D—271—21



Document Created: 2011-11-28 16:02:24
Document Modified: 2011-11-28 16:02:24
