Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 28, 2014.
As of Monday, December 9th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
see pdfsee pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-27
  • Executive Order 271-27 / D271-27
  • ARB # D-271-27
  • Executive Order No: D-271-27
  • C.A.R.B. No. D-271-27
  • Resolution D-271-27
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-27 PDF

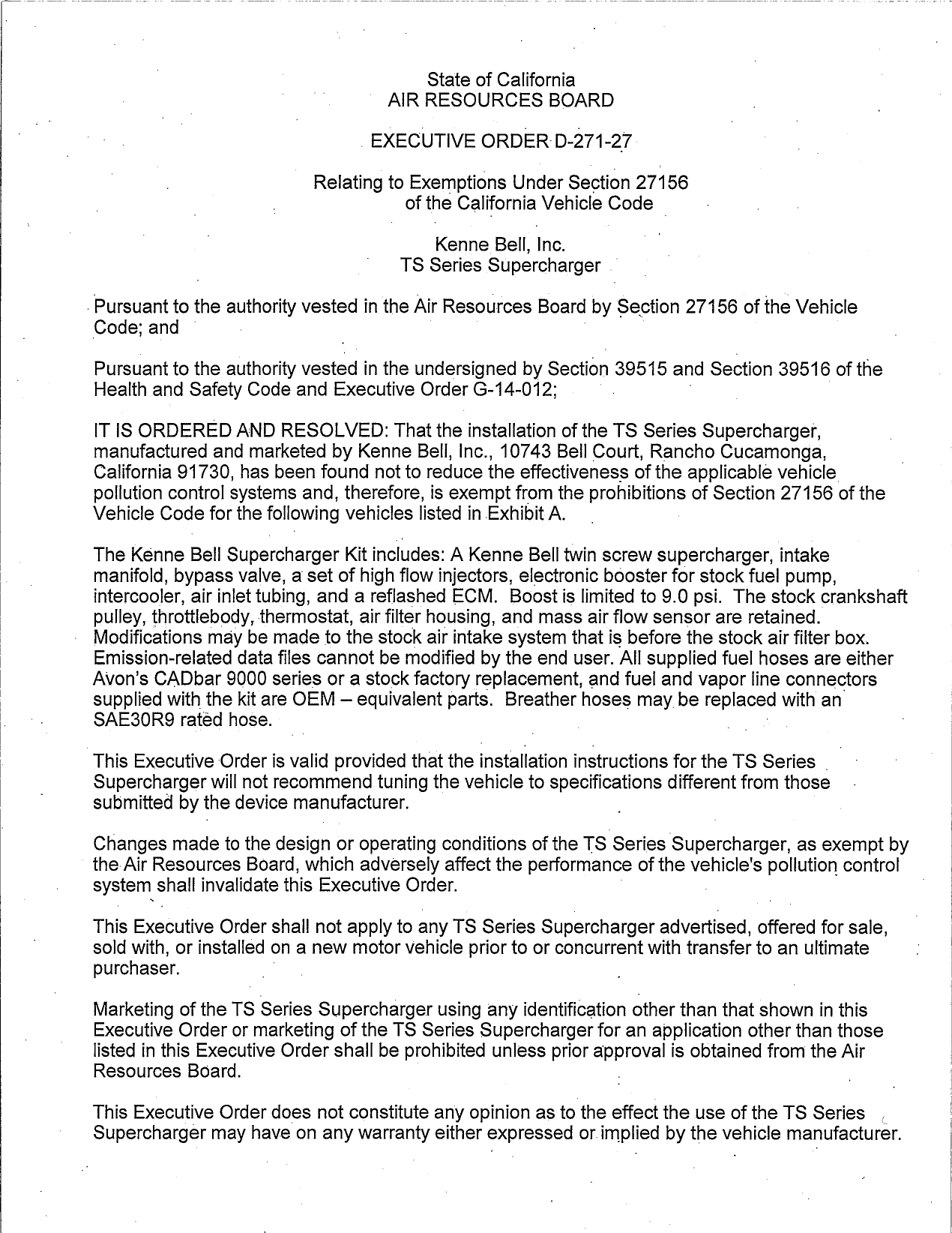

D-271-27 Document:


CARB_D-271-27

                                           State of California
                                   _   AIR RESOURCES BOARD

                                  . EXECUTIVE ORDERD—271—27—
                            Relating to Exemptions Under Sectlon 27156
                                        of the California Vehicle Code _

                                            Kenne Bell, lnc
                                        TS Series Supercharger .

:Pursuant to the authority vested in the Arr Resources Board by Section 27156 of the Vehicle
 Code; and _

Pursuant to the authority vestedin the undersigned by Sect|on 39515 and Sectlon 39516 of the
Health and Safety Code and Executive Order G—14—012;            ‘

IT IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger,
manufactured and marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga,
California 91730, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohrbrtrons of Section 27156 of the
Vehicle Code for the followrng vehicles listed in Exhibit A.

The Kenne Bell Supercharger Kit includes: A Kenne Bell twin screw supercharger, intake
manifold, bypass valve, aset of high flow injectors, electronic booster for stock fuel pump,
rntercooler air inlet tubing, and a reflashed ECM. Boost is limited to 9.0 psi. The stock crankshaft
pulley, throttlebody, thermostat, air filter housrng, and mass air flow sensor are retained.
Modifications may be made to the stock air intake system that is before the stock air filter box.
Emission—related data files cannot be modified by the end user. All supplied fuel hoses are either
Avon‘s CADbar 9000 series or a stock factory replacement, and fuel and vapor line connectors
supplied withthe kit are OEM — equivalent parts. Breather hoses maybe replaced with an
SAE30R9 rated hose.

This Executive Orderis valid provided that the instaliation instructions for the TS Series . |
 Supercharger will not recommend tuning the vehicle to specifications different from those
 submitted by the device manufacturer.

Changes made to the design or operating conditions of the TS'Series Supercharger, as exempt by
theAir Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.                                .

This Executlve Order shall not apply to any TS Series Supercharger advertrsed offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the TS Series Supercharger using any identification other than that shown in this
Executive Order or marketing of the TS Series Supercharger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained fromthe Air
Resources Board.                                                   .

This Executive Order does not constitute any opinion as to the effect the use of the TS Series
Supercharger may have on any warranty either expressed or. implied by the vehicle manufacturer.


                                                   2.


This Executive Order is granted based on prior submitted emission test data generated in
support of Executive Order D—271—19, on a 2008 model year 6.2L Corveftte certified to the Low
Emission Vehicle II Ultra Low Emission Vehicle (LEV II ULEV) emission standards, modified with
the 9 psi. TS Series Supercharger Kit. Test results on the Corvette showed that emission levels,
with Kenne Bell, Inc.‘s TS Series Supercharger installed, met the applicable emission standards
when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental
Federal Test Procedure (SFTP USO6/5C03) test cycles. Boost pressure was measured at 9.0
psi. Examination of the OBD II system showed the TS Series Supercharger did not affect OBD
II system operation. Results from emission testing conducted at the Automotive Testing and
Development Services, Inc., of Ontario, California are listed below with deterioration factors
applied.

   2008 model year Corvette                   CVS—75 FTP
                                   NMOG      CO     NOx            HCHO
   Standards, UL               —   0.070     2.1    0.04           0.011
   Device Test w/df                0.045     1.3    0.03           0.001

                                     USO6/SC03
                               NMHC+NOx              CO
   Standards 4k                  0.14/0.20           8.0/2.7
   Device                        0.07/0.05           1.6/1.1

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to meet
the standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE TS SERIES SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

Executed at El Monte, California, this     28+ day of March 2014.




                Annéite Hebert, Chief
                   issions Compliance, Automotive Regulations and Science Division




                 KENNE BELL, INC. — TS SERIJES SUPERCHARGER — D—271—27


                                             EXHIBIT A
                                                                       SUPERCHARGER DISPL
"IS SERIES —                                                           PULLEY SIZE (INCHES)
 PART NO —                      VEHICLES |       —ENGINE (L)   BOOST     PCcc

TS9200—6.2     2010—2014     CAMARO                 6.2                 3.75    4.00     4.50
TS9200—6.2     2007—2013     CORVETTE               6.2                 3.75    4.00     4.50
TS9200—6.0     2005—2006     CORVETTE               6.0                 3.37    3.75     4.25
TS9200—5.7     1997—2004     CORVETTE               5.7                 312     350      4.00
TS9200—7.0     2006—2013     CORVETTE               7.0                   —     3.50     4.25
TS9200—5.7     2004—2005     CTS _>                 5.7                 312     3.50     4.00
TS9200—6.0     2005—2008     GTO, SSR, CTS—V        6.0                 3.37    3.75     4.25
TS9200—5.7     1994—2005     GTO             |      5.7 >               3.12    3.50     4.00
TS9100—4.8     2007—2014     GM TRUCKS/SUV‘S        4.8                 3.50      —        —
TS9100—5.3     2007—2014     GM TRUCKS/SUV‘S        5.3                 3.37      —        —
TS9100—6.0     2007—2014     GM TRUCKS/SUV‘S        6.0                 3.12      —        —
TS9100—6.2     2007—2014     GM TRUCKS/SUV‘S        6.2                 3.00      —        —
TS9200—6.0     2008—2014     PONTIAC G8             6.0                   —     3.75     4.25
TS9200—6.2     2009—2014 —   PONTIAC G8/CGXP        6.2                   ——    4.00     4.50
                                                                               Revised 2/14/1 4
