Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 12, 2016.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
1GV213 / 1GV212 / 1GR212 / 1GR21Various 1999 - 2015 General Motors Light-Duty Trucks and SUV's. (See PDF for model and kit specs)See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-365-10
  • Executive Order 365-10 / D365-10
  • ARB # D-365-10
  • Executive Order No: D-365-10
  • C.A.R.B. No. D-365-10
  • Resolution D-365-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-365-10 PDF

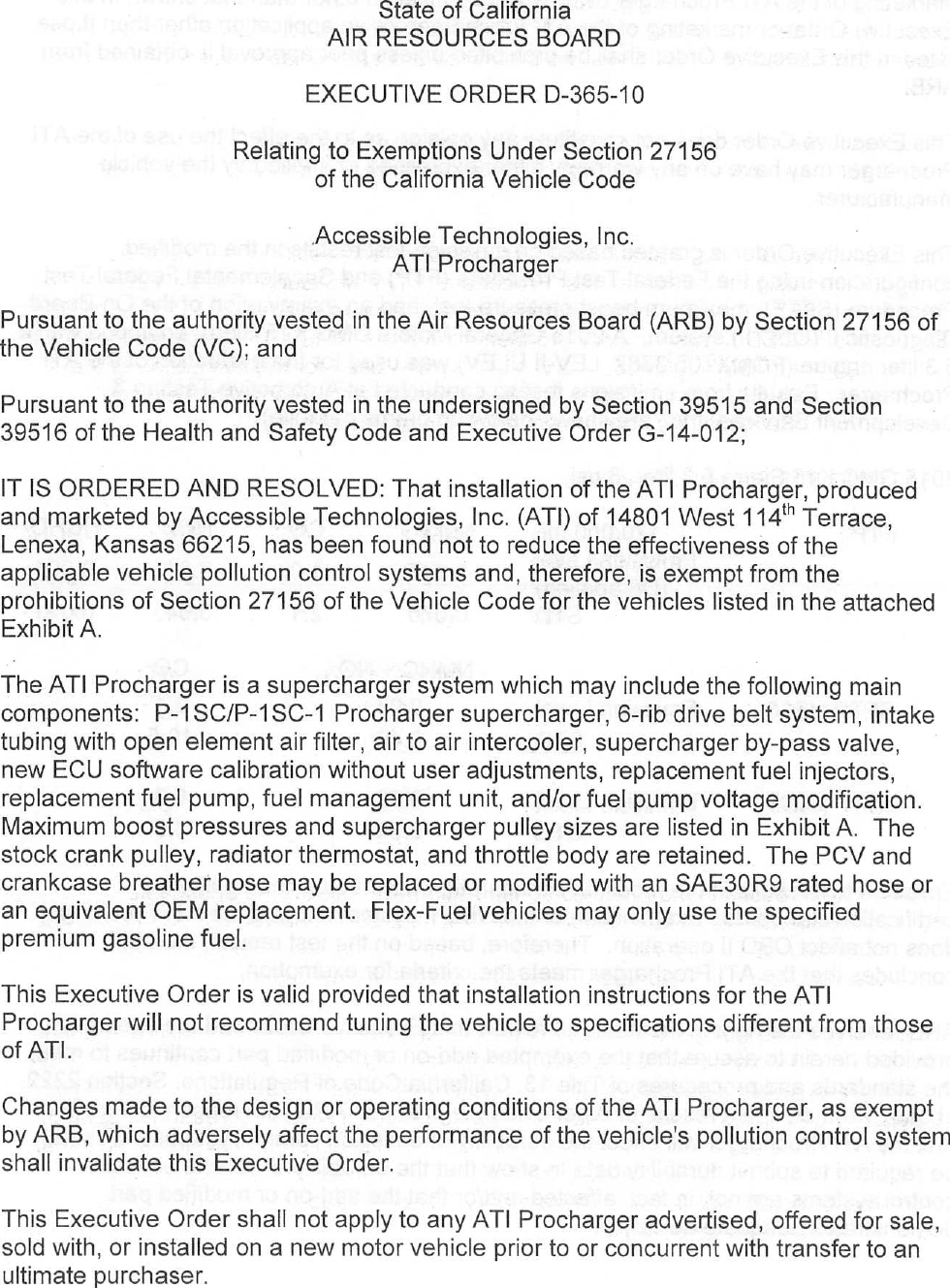

D-365-10 Document:


CARB_D-365-10

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—365—10

                      Relating to Exemptions Under Section 27156
                              of the California Vehicle Code

                              Accessible Technologies, Inc.
                                     ATI Procharger

Pursuant to the authority vested in the Air Resources Board (ARB) by Section 27156 of
the Vehicle Code (VC); and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That installation of the ATI Procharger, produced
and marketed by Accessible Technologies, Inc. (ATI) of 14801 West 114°" Terrace,
Lenexa, Kansas 66215, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the vehicles listed in the attached
Exhibit A.

The ATI Procharger is a supercharger system which may include the following main
components: P—1SC/P—1SC—1 Procharger supercharger, 6—rib drive belt system, intake
tubing with open element air filter, air to air intercooler, supercharger by—pass valve,
new ECU software calibration without user adjustments, replacement fuel injectors,
replacement fuel pump, fuel management unit, and/or fuel pump voltage modification.
Maximum boost pressures and supercharger pulley sizes are listed in Exhibit A. The
stock crank pulley, radiator thermostat, and throttle body are retained. The PCV and
crankcase breather hose may be replaced or modified with an SAE30RY rated hose or
an equivalent OEM replacement. Flex—Fuel vehicles may only use the specified
premium gasoline fuel.

This Executive Order is valid provided that installation instructions for the ATI
Procharger will not recommend tuning the vehicle to specifications different from those
of ATI.

Changes made to the design or operating conditions of the ATI Procharger, as exempt
by ARB, which adversely affect the performance of the vehicle‘s pollution control system
shall invalidate this Executive Order.

This Executive Order shall not apply to any ATI Procharger advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.


Marketing of the ATI Procharger using any identification other than that shown in this
Executive Order or marketing of the ATI Procharger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from
ARB.

This Executive Order does not constitute any opinion as to the effect the use of the ATI
Procharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emission test results in the modified
configuration using the Federal Test Procedure (FTP) and Supplemental Federal Test
Procedure (SFTP), maximum boost pressure test, and an examination of the On—Board
Diagnostic II (OBD II) system. A 2015 General Motors GMC K15 Sierra equipped with a
5.3 liter engine (FGMXT05.3382, LEV—II ULEV) was used for the evaluation of the ATI
Procharger. Results from emissions testing conducted at Automotive Testing &
Development Services, Inc., are shown below (in grams per mile):

2015 GMC K15 Sierra 5.3 liter, 8 psi

       FIP                  120,000 mi.        NMOG           Co         NOx        HCHO
                         Emission Level
                           (DF applied)         0.047         1.0        0.01       0.001
                                     STD        0.070         2.1        0.04       0.011

                                               NMHC + NOx                   cCO
       SFTP USO6         Emission Level             0.03                     3.1
                                   STD              0.40                    10.5

       SFTP $CQ3         Emission Level             0.02                    90.3
                                   STD              0.31                    5:6

Emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD II system showed the ATI Procharger
does not affect OBD II operation. Therefore, based on the test results, the staff
concludes that the ATI Procharger meets the criteria for exemption.

ARB reserves the right in the future to review this Executive Order and the exemption
provided herein to assure that the exempted add—on or modified part continues to meet
the standards and procedures of Title 13, California Code of Regulations, Section 2222,
et seq. Further, if test results or other evidence provides ARB with reason to suspect
that the ATI Procharger will affect the durability of emission control systems, ATI shall
be required to submit durability data to show that the durability of vehicle emission
control systems are not, in fact, affected and/or that the add—on or modified part
demonstrates adequate durability.



                Accessible Technologies, Inc. ~ ATI Procharger ~ D—365—10


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE ATI
PROCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocatlon exist.
                                              7



Executed at El Monte, California, this } day of August 2016.



               IlLk
       IZATmette Hebert, Chief
              Emissions Compliance, Automotive Regulations and Science Division




                 Accessible Technologies, Inc. ~ ATI Procharger ~ D—365—10


                                          Exhibit A



                                          Max
                                         Boost                    Injectors    Pulley     Drive
     Application             Part #       (psi)   Supercharger   Replaced      Size       System

2014 — 2015 GM                                                                        .       |
Truck/SUV 5.3L           1GV213—5CI        8          P—18C—1       No         3.85        6 rib
2014 — 2015 GM                                                                 3.70 m      6 rib.
Truck/SUV 6.2L            1GV212—SCI       8          PASC—1        No
2007 — 2013 GM                                                                    m           .
Truck/SUV 4.8L/5.3L                       8.5         P—18C—1       Yes        4.0         6 rib
2007 — 2009 GM                                        P—1SC—1       Yes        4.0
                                                                                      w        .
                                                                                           6 rib
Truck/SUV 6.0L           1GR212—SCI       7.5


2007 — 2008 GM                                                                        m       .
Truck/SUV 6.2L                            T.5         P—18C—1       Yes        4.0         6 rib

2009 — 2013 GM                                                                        o        |
Truck/SUV 6.2L.           1GR213—SCI      7.5         P—18C—1       Yes         4.0        6 rib
2004 — 2006 GM                                                                        .       |
Truck/SUV 5.3L.                           8.5          P—A18C       Yes         4.0        6 rib
                          1Gl213—sCI                                                  .       J
2004 — 2006 GM                                                                             6 rib
Truck/SUV 6.0L                            T.5          P—18C        Yes         4.0
1999 — 2003 GM                                                                        .           |
                                          8.5          P—1SC         No         4.0        6 rib
Truck/SUV 4.8L/5.3L
                          1Gi212—sCI
1999 — 2003 GM                                                                        w       .
Truck/SUV 6.0L                            T.5          P—18C         No         4.0        6 rib




                   Accessible Technologies, Inc. ~ ATI Procharger ~ D—365—10
