Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 16, 1985.
As of Friday, October 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1985 and older motor vehicles that are powered by gasoline with conventional carburetors and mechanical or electric fuel pumps with and without recirculation systems.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-75-8
  • Executive Order 75-8 / D75-8
  • ARB # D-75-8
  • Executive Order No: D-75-8
  • C.A.R.B. No. D-75-8
  • Resolution D-75-8
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-75-8 PDF

D-75-8 Document:

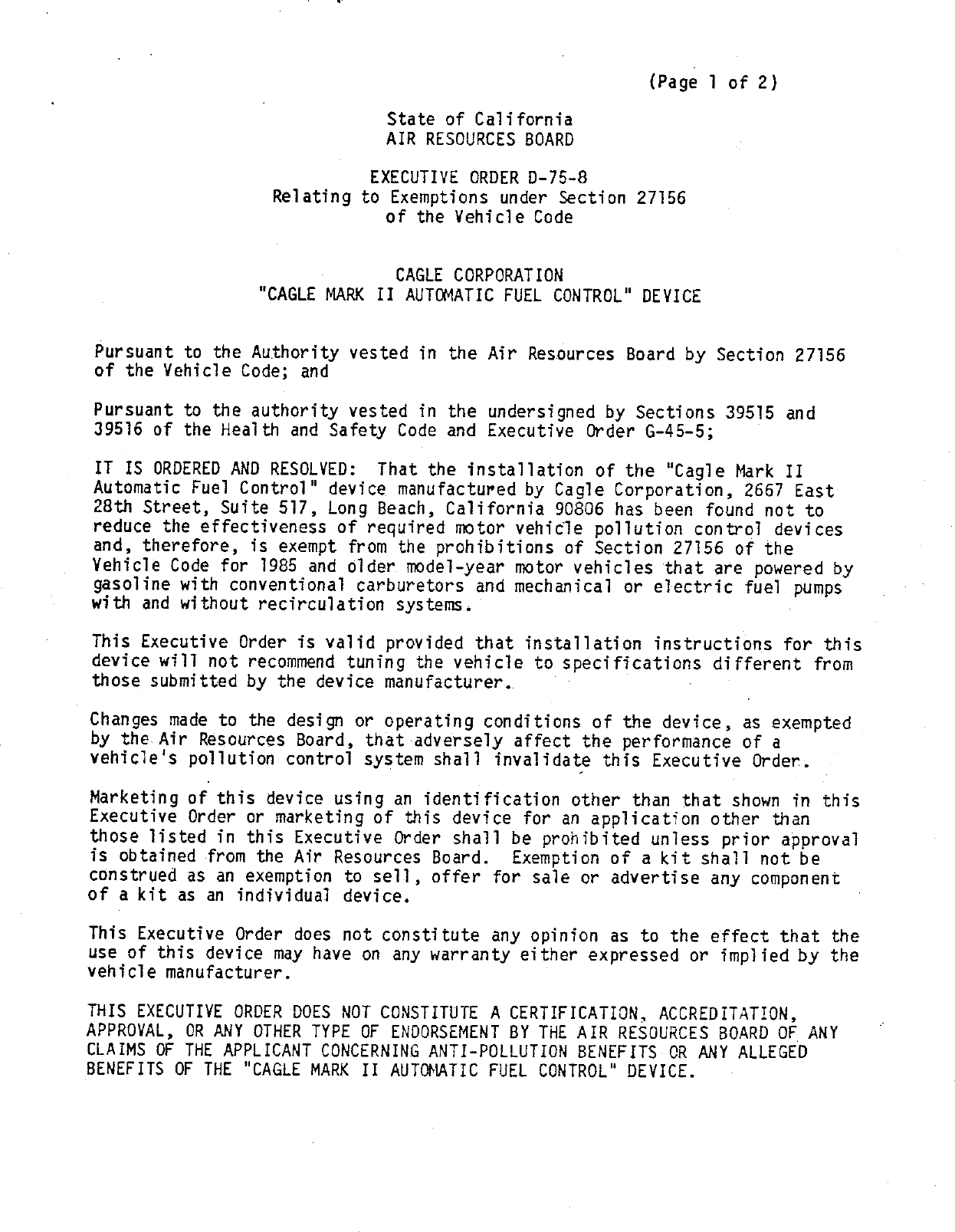

                                                        (Page 1 of 2)
                              State of California
                              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D—75—8
                  Relating to Exemptions under Section 27156
                              of the ¥ehicle Code


                        ~      CAGLE CORPORATION
                 "CAGLE MARK II AUTOMATIC FUEL CONTROL" DEVICE


Pursuant to the Authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the "Cagle Mark II
Automatic Fuel Control" device manufactured by Cagle Corporation, 2667 East
28th Street, Suite 517, Long Beach, California 90806 has been found not to
reduce the effectiveness of required motor vehicle pollution control devices
and, therefore, is exempt from the prohibitions of Section 27156 of the
Yenicle Code for 1985 and older model—year motor vehicles that are powered by
gasoline with conventional carburetors and mechanical or electric fuel pumps
with and without recirculation systems.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale or advertise any component
of a kit as an individual device.
This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, CR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE "CAGLE MARK II AUTOMATIC FUEL CONTROL® DEVICE.


CAGLE CORPORATION                                            EXECUTIVE ORDER D—75—8
                    ‘                                            (Page 2 of 2)



No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)       No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board.  No person shall sell, offer for sale, advertise, or
    represent any motor vehicle poliution control device as a certified device
    which, in fact, is not a certified device.  Any violation of this
    subdivision is a misdemeanor."                                         ’

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—75—7, dated July 6, 1984, is superseded and of no
further force and effect.
                                                     /Q“
Executed at El Monte, California, this         /Q?         day of May, 1985.


                                                        /        74(:/
                                            /////fl//(//
                                            K. D. Drachand, Chief
                                            Mobile Source Division


               STATE OF CALIFORNIA

               AIR RESOURCES BOARD




EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC
    FUEL CONTROL" DEVICE FOR EXEMPTION FROM THE
  PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
   ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
           CALIFORNIA ADMINISTRATIVE CODE




                  May 14, 1985


              EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC
                 FUEL CONTROL" DEVICE FOR EXEMPTION FROM THE
                PROHIBITIONS IN VEKICLE CODE SECTION 27156 IN
                 ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
                         CALIFORNIA ADMINISTRATIVE CODE




                                       by
                            Mobile Source Division

                              State of California

                              Air Resources Board
                              9528 Telstar Avenue
                             El Monte, California
                                     91731




{This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commerical products constitute
endorsement or recommendation for use.)


                                    SUMMARY



      Cagle Corporation requested an update of their existing exemption,

Executive Order (E.0.) No. D—75—7, from the prohibition in Vehicle Code

Section 27156 for their "Cagle Mark II Automatic Fuel Control" fuel pressure

regulator for automobiles.   In particular, Cagle requested that the 1984 and

older modei-year carbureted vehicle exemptions be updated to include all 1985

model—year gasoline—powered vehicles with conventional carburetors.

      Based on previous emissions tests performed on 1979 model—year vehicles,

and an engineering evaluation of 1979 through 1985 model—year vehicle‘s fuel

systems, the staff has concluded that the Cagle fuel pressure regulator will

have no adverse effect on emissions from 1985 model year automobile.

      The staff recommends granting Cagle‘s request to update the Section

27156 exemption to include 1985 model—year vehicles equipped with conventional

carburetors.


                                    CONTENTS



                                               Page Number



SUMMARY



CONTENTS                                           i1



1.     INTRODUCTION



II.    CONCLUSIONS



IIL.      RECOMMENDATIONS



IV.    DEVICE DESCRIPTION AND OPERATION



       DISCUSSION



APPENDIX




                                          1.


Evaluation of "Cagle Corporation Mark II Automatic Fuel Control" Device for
Exemption from the Prohibitions in Vehicle Code Section 27156 in Accordance
with Section 2222, Title 13 of the California Administrative Code



I.    INTRODUCTION

      Cagle Corporation of 2667 East 28th Street, Suite §17, Long Beach

California 90806 requested by letter dated May 1, 1985, an update of the

existing Air Resources Board‘s Executive Order No. D—75—7.    The applicant

requested that the exemption from the prohibitions in Vehicle Code Section

27156 for their "Cagle Mark II Automatic Fuel Control" device be updated to

include all 1985 and older model—year motor vehicles that are powered by

gasoline engines with conventional carburetors and mechanical or electrical

fuel pumps with and without fuel recirculation systems.    E.0. No. D—75—7

exempts 1984 and older model—year vehicles of this type.

II.   CONCLUSION

      Previous Air Resources Board (ARB) confirmatory emissions tests showed

that the use of the "Cagle Mark II Automatic Fuel Control" device did not have

an adverse effect on the exhaust emission control system of 1979 model—year

vehicles.   An exemption from the Vehicle Code for 1979 and older model—year

vehicles was granted.

      The manufacturer was granted updates of the E.0. to include 1980 through

1984 model—year vehicles on the basis that the vehicles‘ fuel systems on 1979

through 1984 were similar in design.

      An engineering evaluation of the vehicles‘ fuel system designs on 1985

model—year vehicles indicates that the use of the Cagle device should not have

an adverse effect on 1985 model—year vehicles.


III.   RECOMMENDATIONS

       Based on the above, the staff concludes that the "Cagle Mark II

Automatic Fuel Control" device meets the criteria for an exemption from the

prohibitions in Vehicle Code Section 27156 for 1985 and older model vehicles

that are powered by gasoline engines with conventional carburetors and

mechanical or electrical fuel pumps with or without fuel recirculation

system.   The staff, therefore, recommends that Executive Order No. D—75—8 be

issued to Cagle Corporation.

IV.    DEVICE DESCRIPTION AND OPERATION

       The "Cagle Mark II Automatic Fuel Control" is a fuel pressure regulator

installed between the fuel pump and the carburetor.    The device has three

external fittings: (1) a fitting at the top for measuring intake manifold

vacuum, (2) an inlet fitting marked "PUMP" for connection to the fuel pump,

and (3) an outlet fitting market "CARB" for connection to the carburetor.     It
is designed to reduce the fuel supply pressure under low fuel demand

conditions but still maintain the required fuel flow to the carburetor under

all operating modes.     The device is controlled by intake manifold vacuum

operating on a spring balanced Buna—N diaphragm.

       A cross sectional view of the device is shown in the Appendix.

       For a more detailed description of the device and its operation, the

reader is referred to ARB Staff Report dated December 17, 1980, entitled

"Cagle Corporation Mark II Automatic Fuel Control Device for Compliance with
the Requirements of Section 27156 of the Vehicle Code".

Y.     DISCUSSION

       Prior to issuing Executive Order No. D—75—2 (which exempted 1979 and

older model—year vehicles) the staff performed comparative exhaust


emissions tests on a 1979 Ford Fairmont with a 302 CID engine and on a 1979

Chevrolet with a 231 CID engine.      The results of these tests were as follows:

                                   1979 Ford Fairmont
                      ARB Emission Data — Cold Start CVS—75

                                      Exhaust Emissions
                                    (Grams per miles)           Fuel Economy
                                   c0_0                             (mpg)
                  Baseline         0.492       3.37      2.46       15.2

                  Device           0.517       3.65      2.48       15.2


                              1979 Chevrolet Malibu
                      ARB Emission Data — Cold Start CVS—75

                                       Exhaust Emissions
                                      .(Grams per miles)        Fue! Economy
                                   _HC        _C0        _NOx   __{mpg)
                  Baseline         0.440       9.43      0.89       15.2

                  Device           0.353       6.21      0.89       16.0


      In addition, fuel pressure measurements were taken before and after the

regulator for various manifold vacuums.      The results were as follows:



Manifold Yacuum              Fuel Pressure (#/in)                  Change
 {inches Hg)          Before Regulator    After Regulator        in Pressure

      15                     4.2                  2.55              1.65

     13                      4.2                  2.50              1.70

     11                      4.2                  2.50              1.70

      9                      4.2                  3.05              1.15

      7                      4.2                  3.70              0.50

      5                      4.2                  3.88              0. 32

      3                      3.6                  3.60              0.00


      Through a series of letters covering several years, the applicant

requested that the exemption be updated to include 1980 through 1984

model—year vehicles, respectively.     In response to those requests, the staff

compared the vehicle‘s fuel system design on 1979 through 1984 model—year

vehicles.   Since no significant differences that could adversely affect

exhaust emissions were noted, no additional tests were requested for the

updates.

      In response to this request, the staff compared the vehicle‘s fuel

system on 1979 through 1985 model—year vehicles.    No significant differences

were noted between the vehicles‘ fuel system design even though newer cars

tend to operate more fuel efficient.    The staff, therefore again, did not

recommend or perform any additional tests.


APPENDIX





Document Created: 2005-09-01 12:44:25
Document Modified: 2005-09-01 12:44:25

Previous E.O. D-75-7 | Previous E.O. D-74 | Next E.O. D-75-9 | Next E.O. D-76
